Toyota Avalon (XX50): Outer Rear View Mirror Cover

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Vehicle Exterior / Mirror (ext) / Outer Rear View Mirror Cover

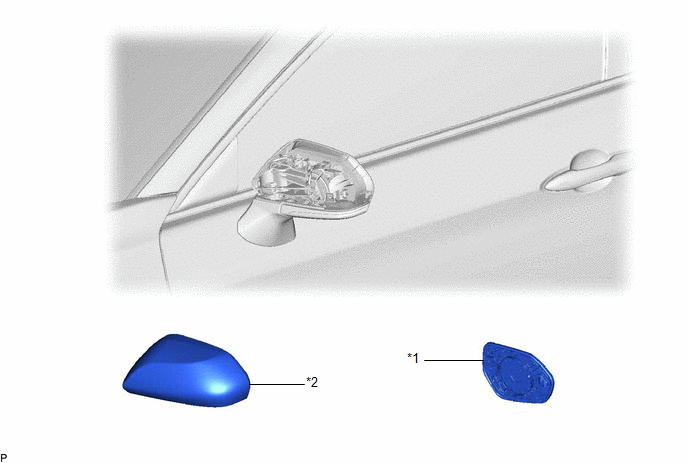

Components

COMPONENTS

ILLUSTRATION

*1

OUTER MIRROR

*2

OUTER MIRROR COVER

Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL OUTER MIRROR COVER

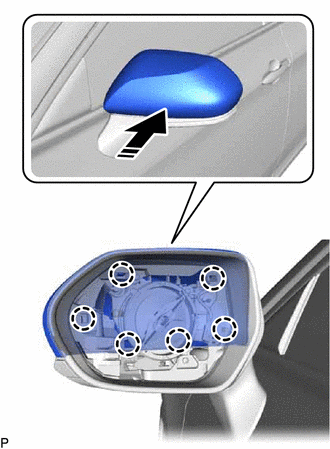

(a) Engage the 6 claws to install the outer mirror cover as shown in the illustration.

Install in this Direction

2. INSTALL OUTER MIRROR

Click here

Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE OUTER MIRROR

Click here

2. REMOVE OUTER MIRROR COVER

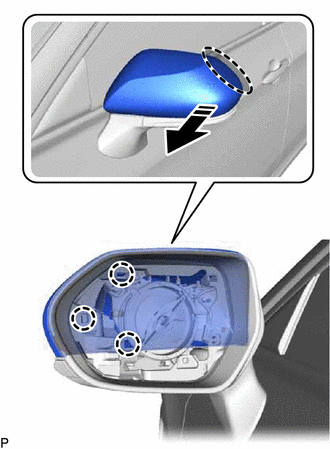

(a) Pull the outer mirror cover as shown in the illustration to disengage the 3 claws.

Place Hand Here

Pull in this Direction

NOTICE:

As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:

If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.

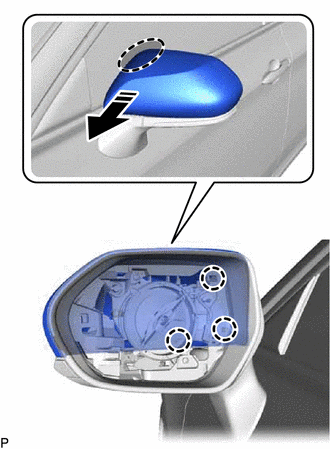

(b) Pull the outer mirror cover as shown in the illustration to disengage the 3 claws and remove the outer mirror cover.

Place Hand Here

Pull in this Direction

NOTICE:

As the claws may be damaged, make sure not to apply force in any direction other than shown in the illustration.

HINT:

If it is difficult to disengage the claws, disengage them using a screwdriver with its tip wrapped with protective tape.
