Toyota Avalon (XX50) 2019-2022 Owners Manual: Key information

Keys

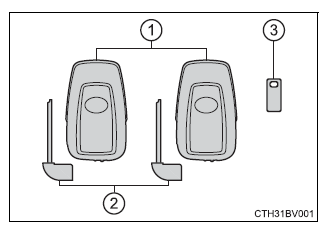

The keys

The following keys are provided with the vehicle.

1. Electronic keys
   • Operating the smart key system
   • Operating the wireless remote control function
2. Mechanical keys
3. Key number plate

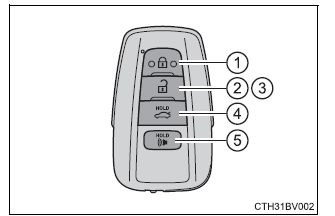

Wireless remote control

1. Locks all the doors
2. Unlocks all the doors
3. Opens the windows*2 and moon roof*1, 2
4. Opens the trunk
5. Sounds the alarm

*1: If equipped
*2: This setting must be customized at your Toyota dealer.

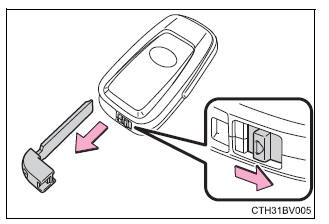

Using the mechanical key

To take out the mechanical key, slide the release lever and take the key out.

The mechanical key can only be inserted in one direction, as the key only has grooves on one side.

If the key cannot be inserted in a lock cylinder, turn it over and reattempt to insert it.

After using the mechanical key, store it in the electronic key. Carry the mechanical key together with the electronic key. If the electronic key battery is depleted or the entry function does not operate properly, you will need the mechanical key.

■Panic mode

When is pressed for longer than about one second, an alarm will sound intermittently and the vehicle lights will flash to deter any person from trying to break into or damage your vehicle.

To stop the alarm, press any button on the electronic key.

■If you lose your mechanical keys New genuine mechanical keys can be made by your Toyota dealer using the other mechanical key and the key number stamped on your key number plate. Keep the plate in a safe place such as your wallet, not in the vehicle.

■When riding in an aircraft When bringing an electronic key onto an aircraft, make sure you do not press any button on the electronic key while inside the aircraft cabin. If you are carrying an electronic key in your bag etc., ensure that the buttons are not likely to be pressed accidentally. Pressing a button may cause the electronic key to emit radio waves that could interfere with the operation of the aircraft.

■Key battery depletion

• The standard battery life is 1 to 2 years.
• If the battery becomes low, an alarm will sound in the cabin when the engine stops.
• As the electronic key always receives radio waves, the battery will become depleted even if the electronic key is not used. The following symptoms indicate that the electronic key battery may be depleted. Replace the battery when necessary.
  • The smart key system or the wireless remote control does not operate.
  • The detection area becomes smaller.
  • The LED indicator on the key surface does not turn on.
• To reduce key battery depletion when the electronic key is to not be used for long periods of time, set the electronic key to the battery-saving mode.
• To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of the following electrical appliances that produce a magnetic field:
  • TVs
  • Personal computers
  • Cellular phones, cordless phones and battery chargers
  • Recharging cellular phones or cordless phones
  • Table lamps
  • Induction cookers

■Confirmation of the registered key number The number of keys already registered to the vehicle can be confirmed. Ask your Toyota dealer for details.

■If a wrong key is used The key cylinder rotates freely to isolate inside mechanism.
