Toyota Avalon (XX50) 2019-2022 Owners Manual: Pictorial index

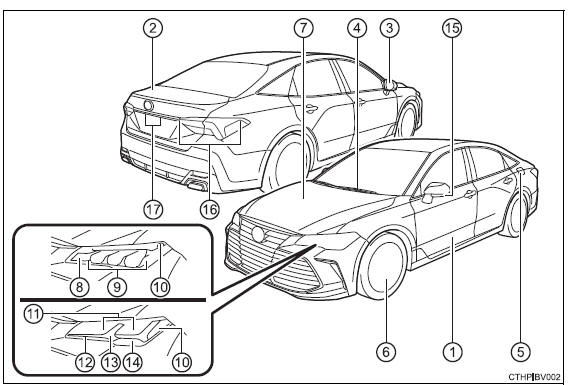

Exterior

1. Doors
   Locking/unlocking
   Opening/closing the side windows
   Locking/unlocking by using the mechanical key
2. Trunk
   Opening from inside
   Opening from outside
3. Outside rear view mirrors
   Adjusting the mirror angle
   Folding the mirrors
   Driving position memory
   Defogging the mirrors
4. Windshield wipers
   Precautions for winter season
5. Fuel filler door
   Refueling method
   Fuel type/fuel tank capacity
6. Tires
   Tire size/inflation pressure
   Winter tires/tire chains
   Checking/rotation/tire pressure warning system
   Coping with flat tires
7. Hood
   Opening
   Engine oil
   Coping with overheat

Light bulbs of the exterior lights for driving

8. Front turn signal lights/parking lights
9. Headlights/daytime running lights
10. Front side marker lights
11. Headlights
12. Front turn signal lights
13. Daytime running lights/parking lights
14. Front turn signal lights/cornering lights
15. Side turn signal lights
16. Rear turn signal lights/rear side marker lights/ tail lights/stoplights
    Back-up lights
    Shifting the shift lever to R
17. License plate lights

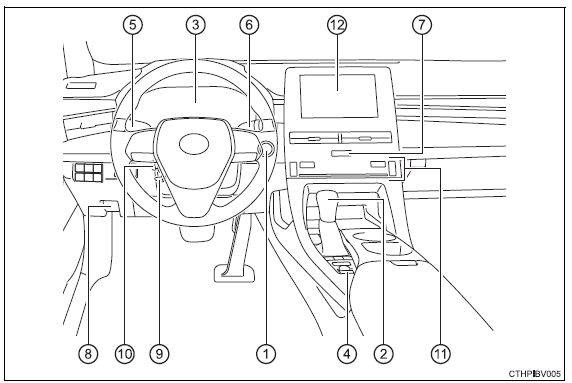

Instrument panel

1. Engine switch
   Starting the engine/changing the positions or modes
   Emergency stop of the engine
   When the engine will not start
2. Shift lever
   Changing the shift position
   Precautions for towing
   When the shift lever does not move
3. Meters
   Reading the meters/adjusting the instrument panel lights
   Warning lights/indicator lights
   When a warning light comes on
   Multi-information display
   Display
   When the warning messages are displayed
4. Parking brake switch
   Applying/releasing
   Precautions for winter season
   Warning light/warning buzzer/ warning message
5. Turn signal lever
   Headlight switch
   Headlights/side marker lights/parking lights/tail lights/ license plate lights/daytime running lights
6. Windshield wiper and washer switch
   Usage
   Adding washer fluid
7. Emergency flasher switch
8. Hood lock release lever
9. Tilt and telescopic steering lock release lever*1
10. Tilt and telescopic steering control switch*1
    Adjustment
    Driving position memory
11. Air conditioning system
    Usage
    Rear window defogger
12. Entune Audio Plus*1, 2
    Entune Premium Audio*1, 2

*1: If equipped
*2: Refer to "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

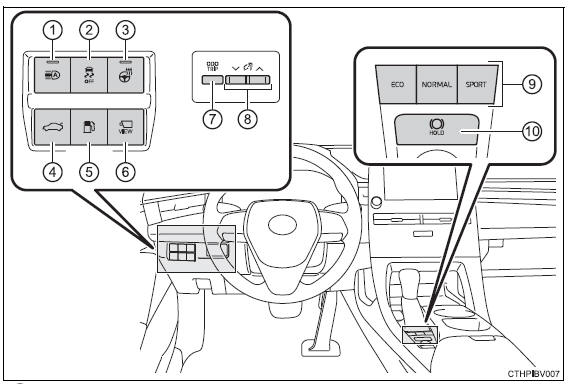

Switches

1. Automatic High Beam switch
2. VSC OFF switch
3. Heated steering wheel*1
4. Trunk opener switch
5. Fuel filler door opener switch
6. Camera switch*1, 2
7. "ODO/TRIP" switch
8. Instrument panel light control switch
9. Driving mode select switches
10. Brake hold switch

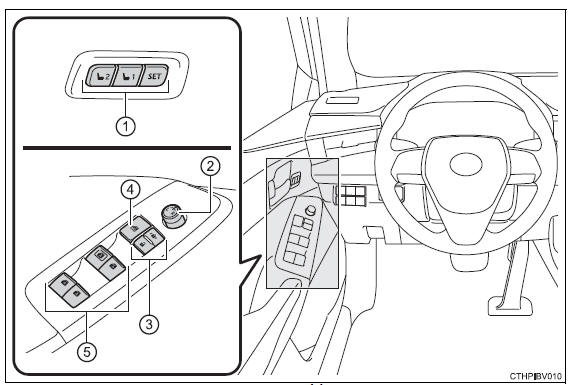

1. Driving position memory switches*1
   Driving position memory*1
2. Outside rear view mirror switch
3. Door lock switches
4. Window lock switch
5. Power window switches

*1: If equipped
*2: Refer to "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

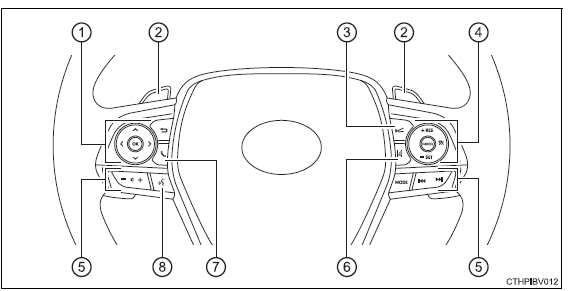

1. Meter control switches
2. Paddle shift switches*1
3. Vehicle-to-vehicle distance switch
4. Cruise control switches
   Dynamic radar cruise control with full-speed range
5. Audio remote control switches*2
6. LDA (Lane Departure Alert with steering control) switch
7. Phone switch*2
8. Talk switch*2

*1: If equipped
*2: Refer to "NAVIGATION AND MULTIMEDIA SYSTEM OWNER'S MANUAL".

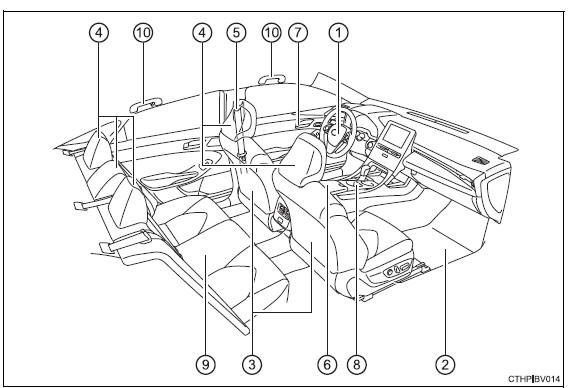

Interior

1. SRS airbags
2. Floor mats
3. Front seats
   Driving position memory
4. Head restraints
5. Seat belts
6. Console box
7. Inside lock buttons
8. Cup holders
9. Rear seats
10. Assist grips

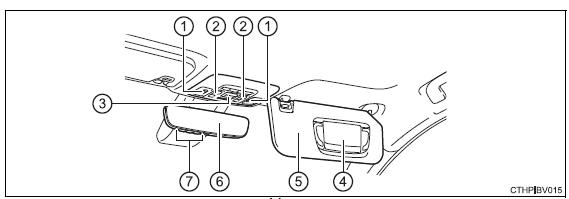

1. Interior lights/personal lights*1
2. Moon roof switches*2
3. "SOS" button*2
4. Vanity mirrors
5. Sun visors
6. Inside rear view mirror
7. Garage door opener switches*2

*1: The illustration shows the front, but they are also equipped in the rear.
*2: If equipped
