COMPONENTS

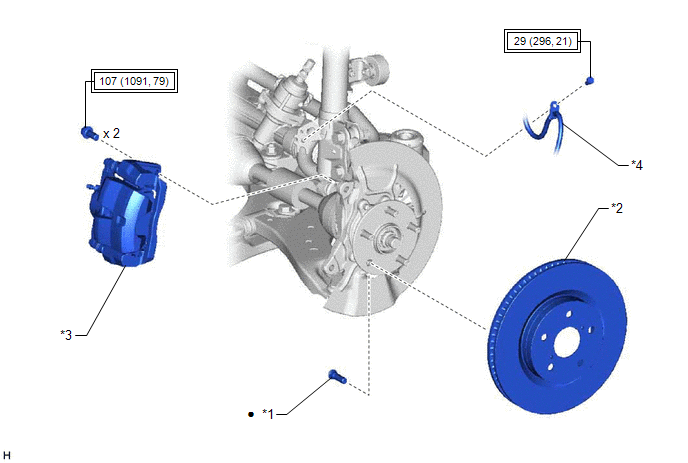

ILLUSTRATION

*1

FRONT AXLE HUB BOLT

*2

FRONT DISC

*3

FRONT DISC BRAKE CALIPER ASSEMBLY

*4

FRONT FLEXIBLE HOSE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
    Front Axle Hub Bolt

    Replacement
