COMPONENTS

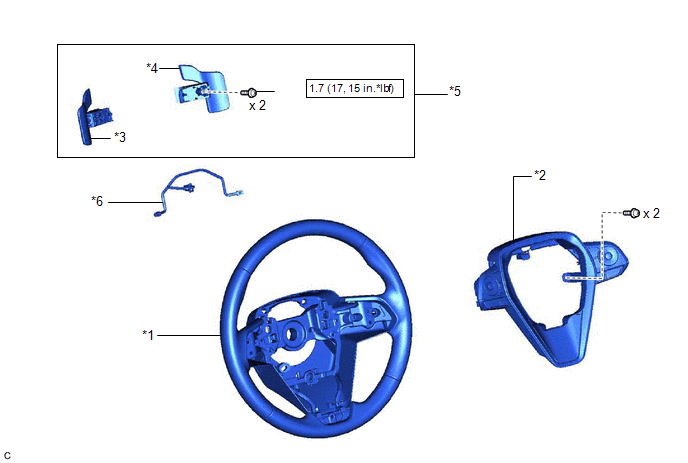

ILLUSTRATION

*1

STEERING WHEEL ASSEMBLY

*2

STEERING PAD SWITCH ASSEMBLY

*3

NO. 1 TRANSMISSION SHIFT SWITCH ASSEMBLY

*4

NO. 2 TRANSMISSION SHIFT SWITCH ASSEMBLY

*5

SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)

*6

NO. 1 SWITCH WIRE

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

★

Precoated part

-

-
    Shift Paddle Switch

    Inspection
