COMPONENTS

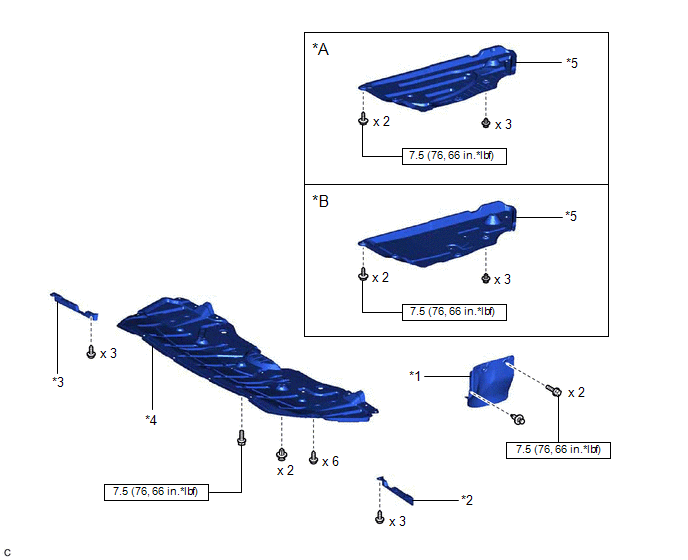

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT FENDER APRON SEAL LH

*2

FRONT WHEEL OPENING EXTENSION PAD LH

*3

FRONT WHEEL OPENING EXTENSION PAD RH

*4

NO. 1 ENGINE UNDER COVER

*5

REAR ENGINE UNDER COVER LH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

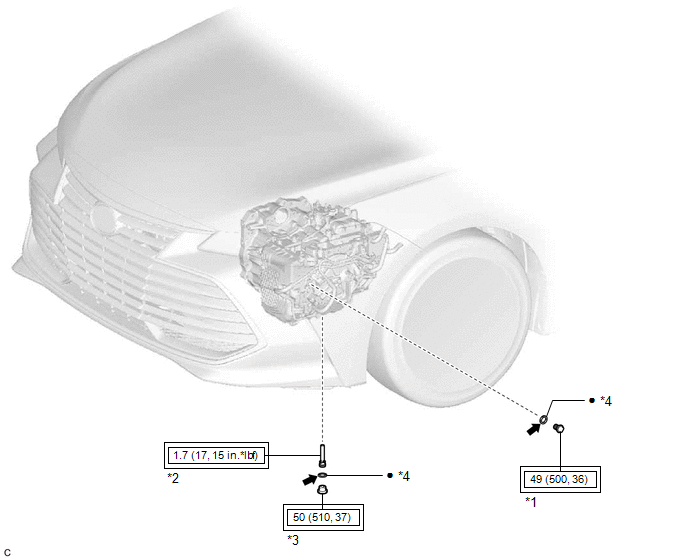

ILLUSTRATION

*1

REFILL PLUG

*2

NO. 1 TRANSMISSION OIL FILLER TUBE

*3

OVERFLOW PLUG

*4

GASKET

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

Toyota Genuine ATF WS

-

-
    Adjustment

    High Temperature Adjustment
