COMPONENTS

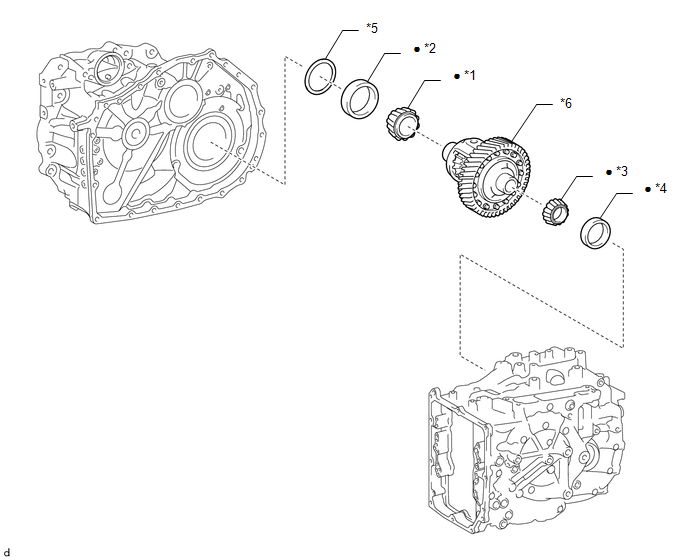

ILLUSTRATION

*1

FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE)

*2

FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)

*3

FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE)

*4

FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)

*5

DIFFERENTIAL DRIVE PINION SHIM

*6

DIFFERENTIAL CASE ASSEMBLY

●

Non-reusable part

-

-
    Differential Case

    Disassembly
