DISASSEMBLY

PROCEDURE

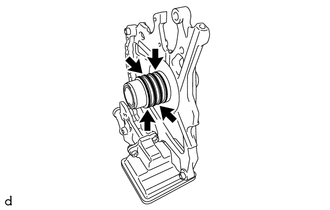

1. REMOVE CLUTCH DRUM OIL SEAL RING

(a) Remove the 4 clutch drum oil seal rings from the stator shaft assembly.

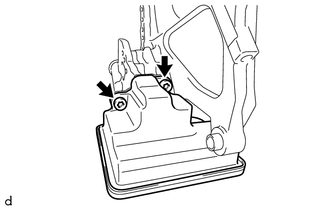

2. REMOVE OIL STRAINER ASSEMBLY

(a) Using a T30 "TORX" socket wrench, remove the 2 bolts and oil strainer assembly from the front oil pump cover sub-assembly.

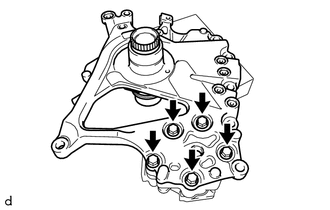

3. REMOVE STATOR SHAFT ASSEMBLY

(a) Remove the 5 bolts and stator shaft assembly from the front oil pump body.

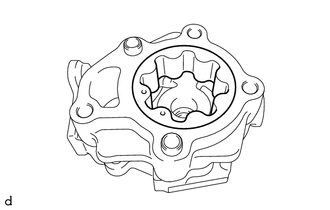

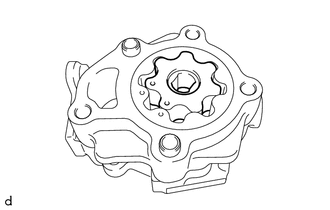

4. REMOVE FRONT OIL PUMP DRIVE GEAR

(a) Remove the front oil pump drive gear from the front oil pump body.

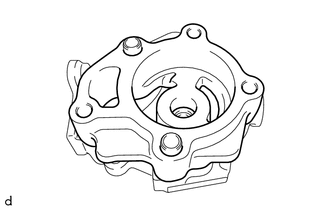

5. REMOVE FRONT OIL PUMP DRIVEN GEAR

(a) Remove the front oil pump driven gear from the front oil pump body.

6. REMOVE FRONT OIL PUMP BODY

(a) Remove the front oil pump body from the front oil pump cover sub-assembly.

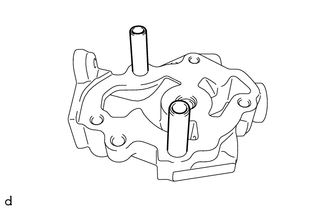

7. REMOVE RING PIN

(a) Remove the 2 ring pins from the front oil pump cover sub-assembly.
