COMPONENTS

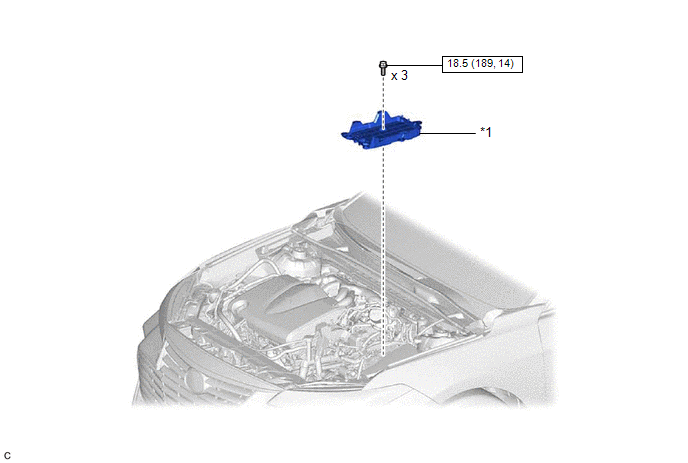

ILLUSTRATION

*1

BATTERY CLAMP SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

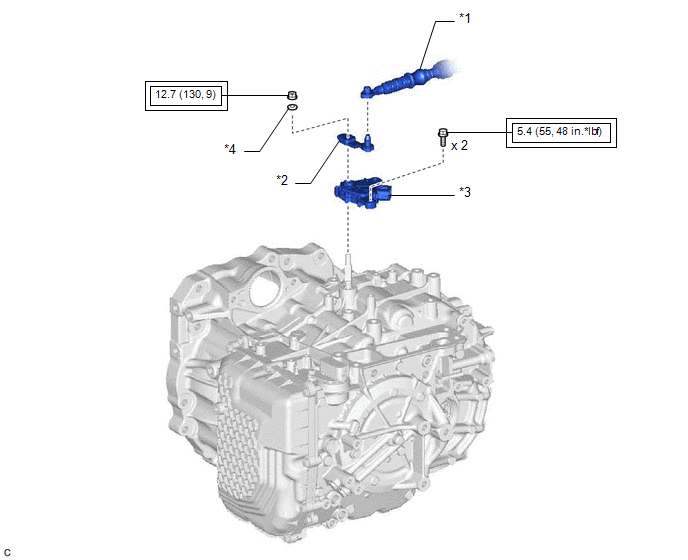

ILLUSTRATION

*1

TRANSMISSION CONTROL CABLE ASSEMBLY

*2

TRANSMISSION CONTROL SHAFT LEVER

*3

PARK/NEUTRAL POSITION SWITCH ASSEMBLY

*4

WASHER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

-

-
