REASSEMBLY

PROCEDURE

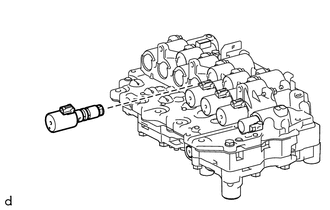

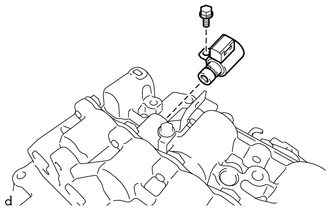

1. INSTALL SOLENOID (SL) VALVE

(a) Coat the solenoid (SL) valve with Toyota Genuine ATF WS.

(b) Install the solenoid (SL) valve to the transmission valve body assembly with the bolt.

Torque:

7.0 N·m {71 kgf·cm, 62 in·lbf}

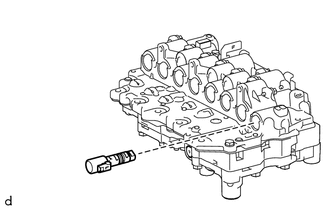

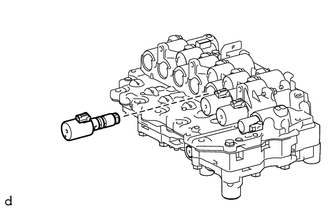

2. INSTALL SOLENOID (SLT) VALVE

(a) Coat the solenoid (SLT) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

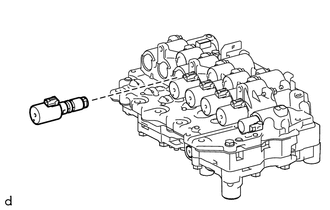

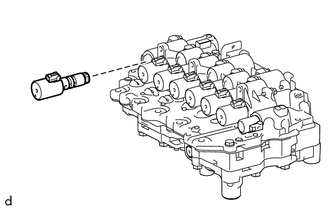

3. INSTALL SOLENOID (SL2) VALVE

(a) Coat the solenoid (SL2) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

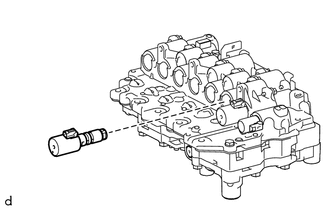

4. INSTALL SOLENOID (SL1) VALVE

(a) Coat the solenoid (SL1) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

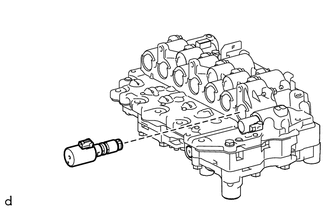

5. INSTALL SOLENOID (SL3) VALVE

(a) Coat the solenoid (SL3) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

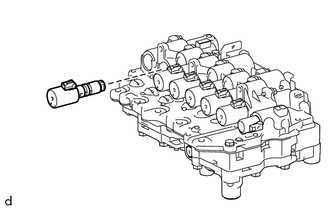

6. INSTALL SOLENOID (SL4) VALVE

(a) Coat the solenoid (SL4) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

7. INSTALL SOLENOID (SL6) VALVE

(a) Coat the solenoid (SL6) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

8. INSTALL SOLENOID (SL5) VALVE

(a) Coat the solenoid (SL5) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly

9. INSTALL SOLENOID (SLU) VALVE

(a) Coat the solenoid (SLU) valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.

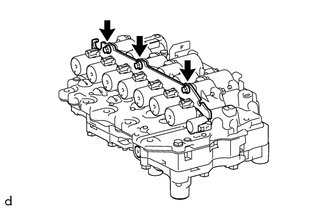

10. INSTALL SOLENOID LOCK PLATE

(a) Install the solenoid lock plate to the transmission valve body assembly with the 3 bolts.

Torque:

7.0 N·m {71 kgf·cm, 62 in·lbf}

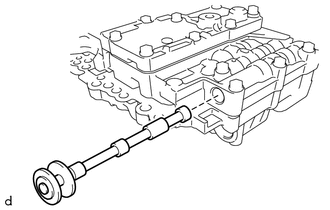

11. INSTALL MANUAL VALVE

(a) Coat the manual valve with Toyota Genuine ATF WS and install it to the transmission valve body assembly.
