Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Parts Location

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual / Engine / 2gr-fks Cooling / Cooling Fan System / Parts Location

PARTS LOCATION

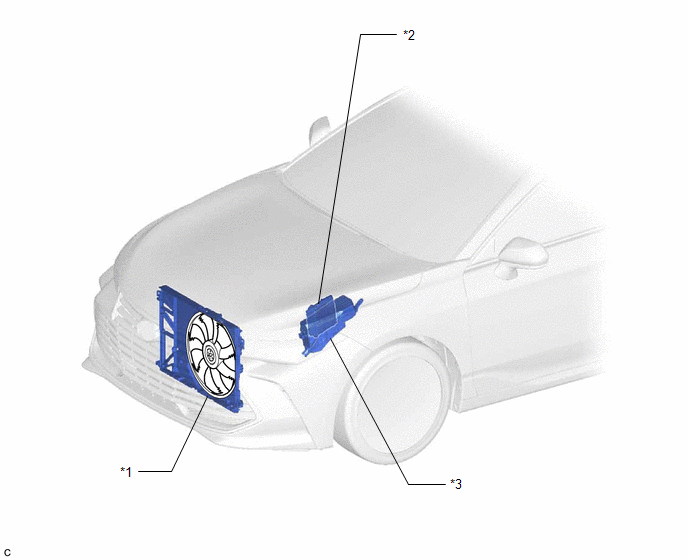

ILLUSTRATION

*1

FAN WITH MOTOR ASSEMBLY

- COOLING FAN MOTOR

- COOLING FAN ECU

*2

ECM

*3

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- EFI-MAIN NO. 1 RELAY

-

-
    On-vehicle Inspection
