Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Components

COMPONENTS

ILLUSTRATION

*1

FRONT WHEEL OPENING EXTENSION PAD LH

*2

FRONT WHEEL OPENING EXTENSION PAD RH

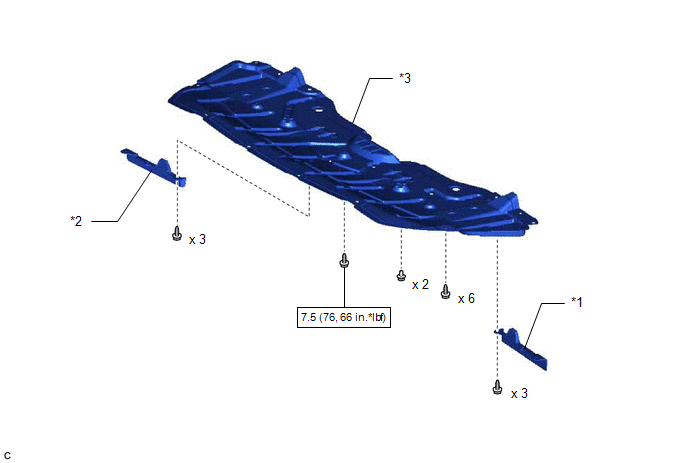

*3

NO. 1 ENGINE UNDER COVER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

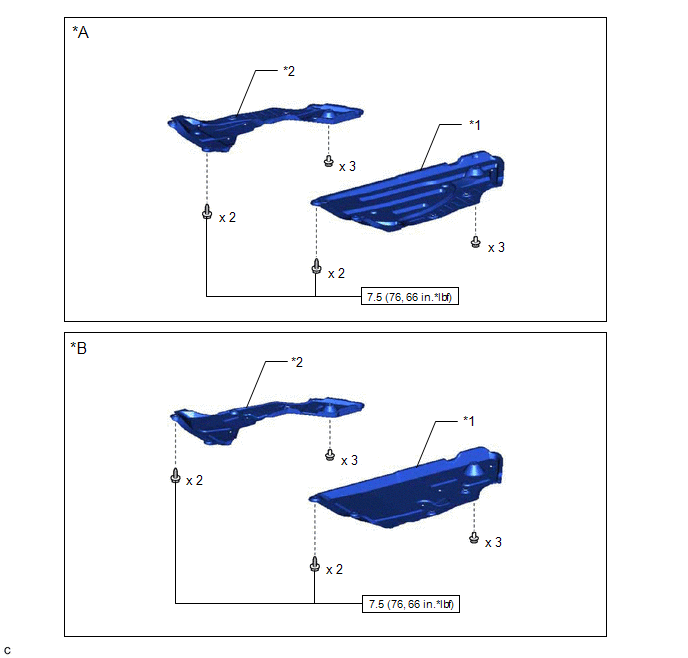

*A

Type A

*B

Type B

*1

REAR ENGINE UNDER COVER LH

*2

REAR ENGINE UNDER COVER RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

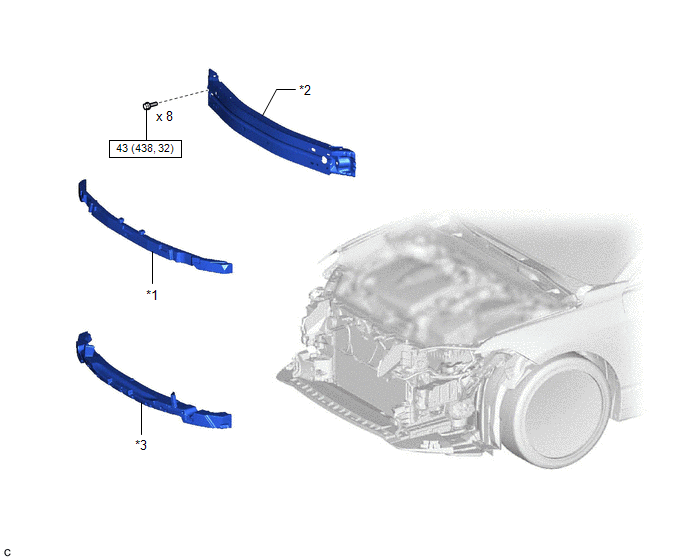

*1

FRONT BUMPER ENERGY ABSORBER

*2

FRONT BUMPER REINFORCEMENT

*3

NO. 2 FRONT BUMPER ENERGY ABSORBER

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

ILLUSTRATION

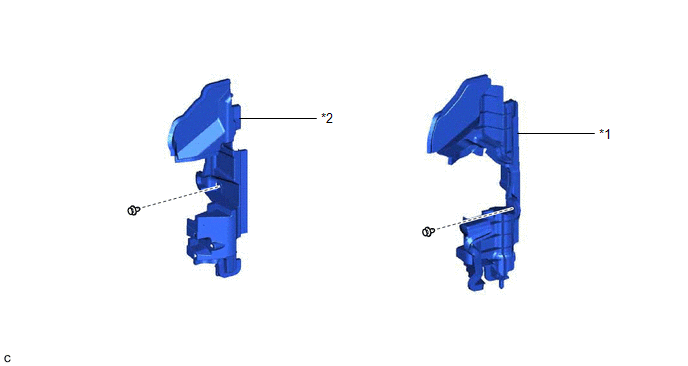

*1

NO. 1 RADIATOR AIR GUIDE LH

*2

NO. 1 RADIATOR AIR GUIDE RH

ILLUSTRATION

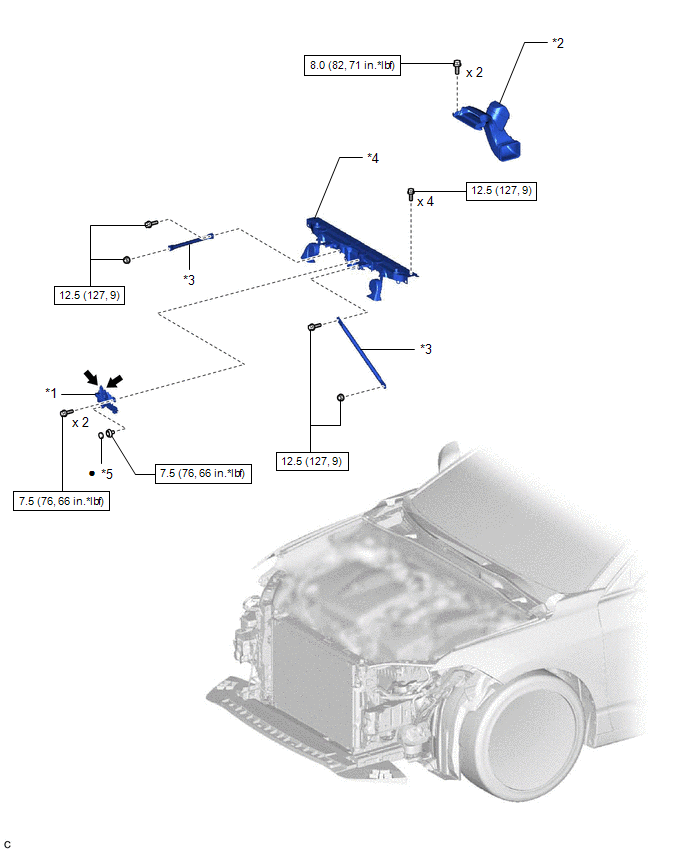

*1

HOOD LOCK ASSEMBLY

*2

INLET AIR CLEANER ASSEMBLY

*3

UPPER RADIATOR MOUNTING BRACKET

*4

UPPER RADIATOR SUPPORT SUB-ASSEMBLY

*5

HOOD LOCK NUT CAP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-

ILLUSTRATION

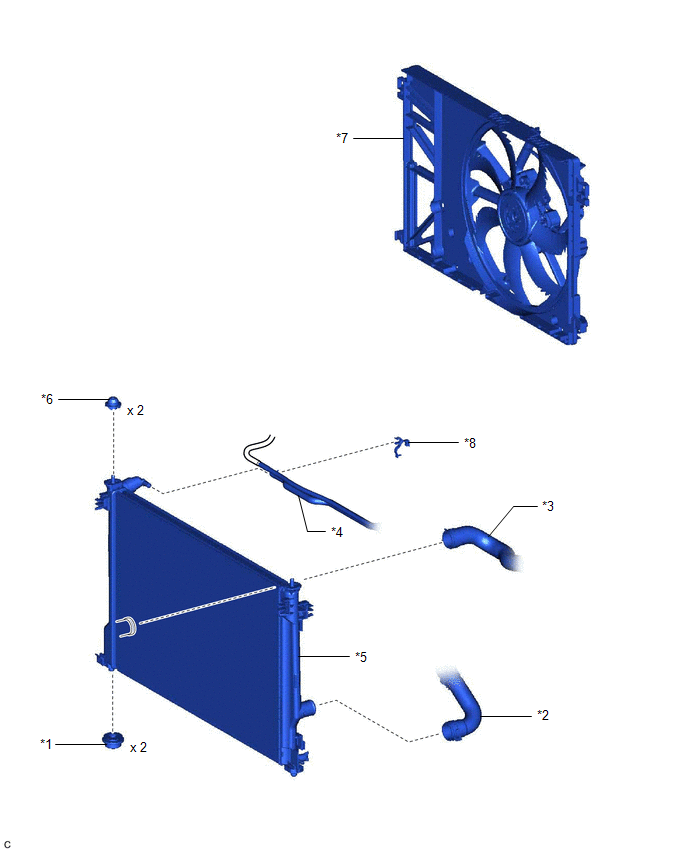

*1

LOWER RADIATOR SUPPORT

*2

NO. 1 RADIATOR HOSE

*3

NO. 2 RADIATOR HOSE

*4

NO. 5 WATER BY-PASS HOSE

*5

RADIATOR ASSEMBLY

*6

RADIATOR SUPPORT CUSHION

*7

FAN WITH MOTOR ASSEMBLY

*8

HOSE CLAMP

    Radiator

    Installation
