COMPONENTS

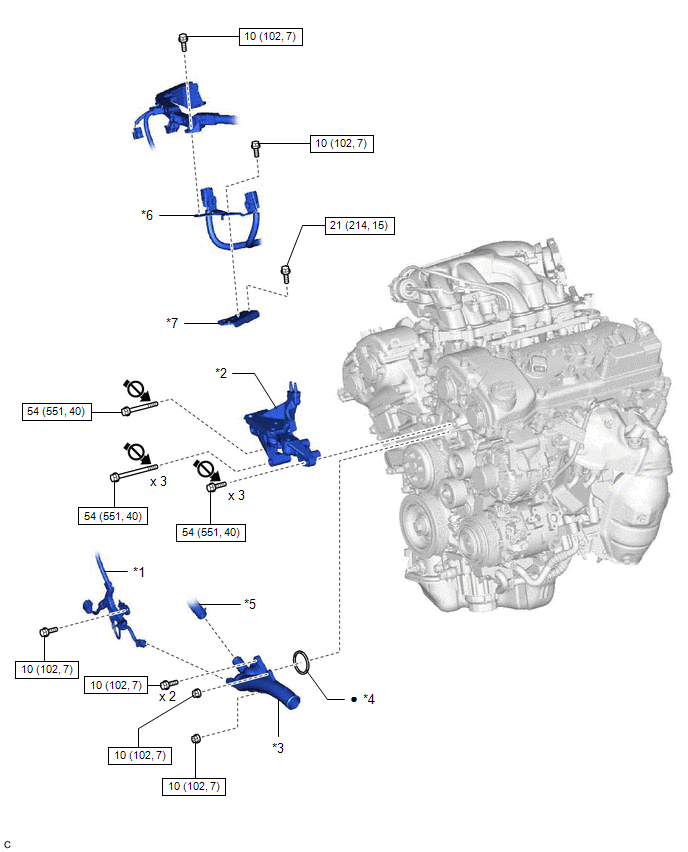

ILLUSTRATION

*1

ENGINE WIRE

*2

FRONT NO. 1 ENGINE MOUNTING BRACKET LH

*3

WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

*4

GASKET

*5

WATER BY-PASS HOSE

*6

WIRE HARNESS CLAMP BRACKET

*7

NO. 2 ENGINE MOUNTING STAY RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

Do not apply lubricants to the threaded parts

-

-
    Thermostat

    Inspection
