PARTS LOCATION

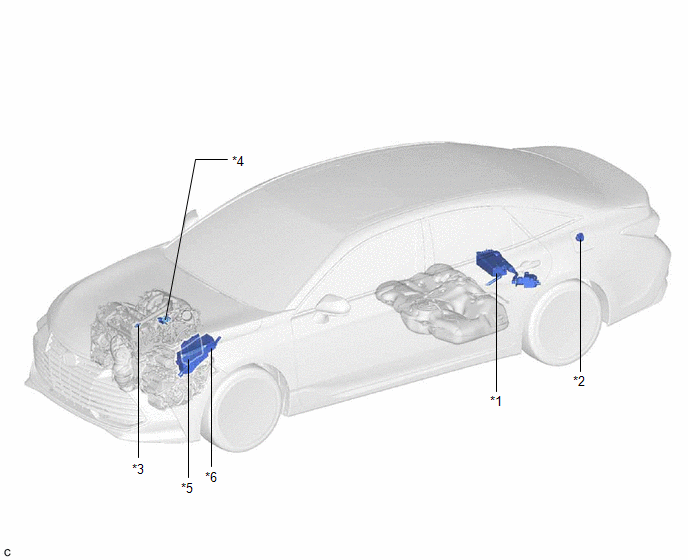

ILLUSTRATION

*1

CANISTER (CHARCOAL CANISTER ASSEMBLY)

*2

FUEL TANK CAP ASSEMBLY

*3

PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

*4

PURGE VALVE (PURGE VSV)

*5

ECM

*6

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- EFI-MAIN NO. 1 RELAY

- EFI-MAIN NO. 1 FUSE
