COMPONENTS

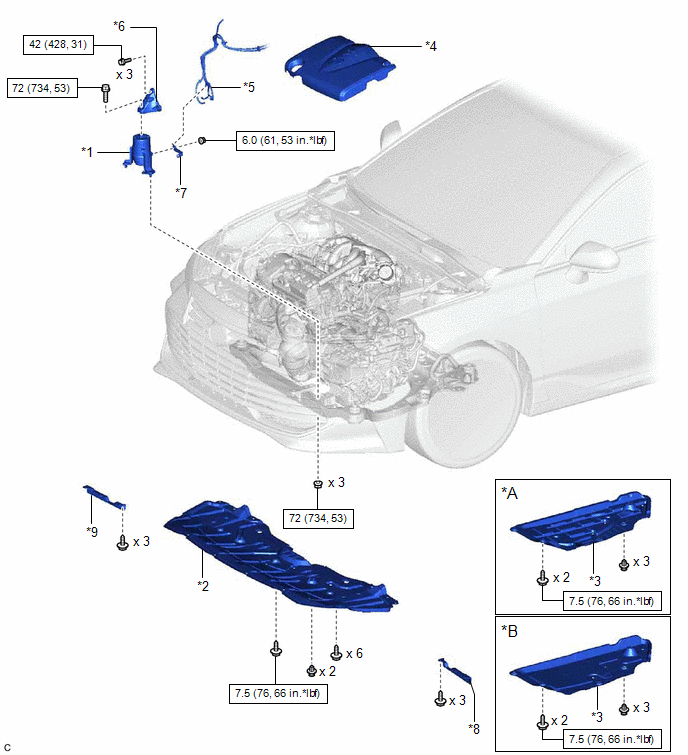

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT ENGINE MOUNTING INSULATOR

*2

NO. 1 ENGINE UNDER COVER

*3

REAR ENGINE UNDER COVER LH

*4

V-BANK COVER SUB-ASSEMBLY

*5

VACUUM HOSE

*6

FRONT ENGINE MOUNTING BRACKET

*7

STAY

*8

FRONT WHEEL OPENING EXTENSION PAD LH

*9

FRONT WHEEL OPENING EXTENSION PAD RH

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
