COMPONENTS

ILLUSTRATION

*1

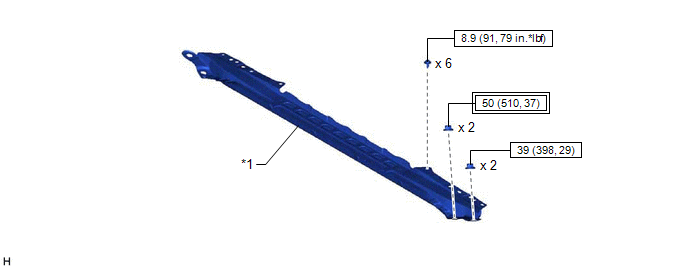

FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

ILLUSTRATION

*1

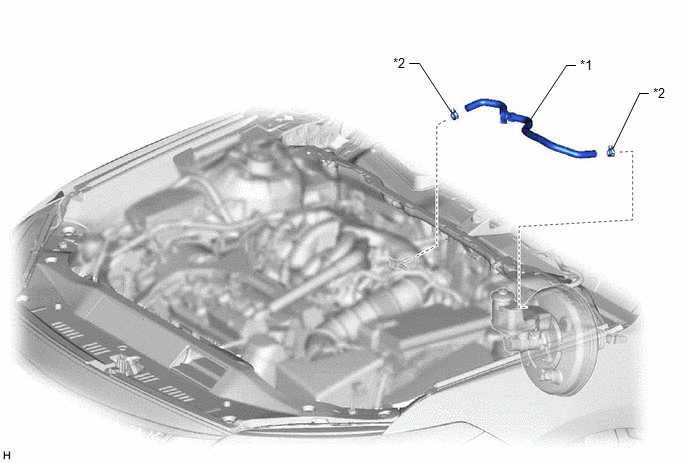

UNION TO CHECK VALVE HOSE

*2

CLIP

ILLUSTRATION

*1

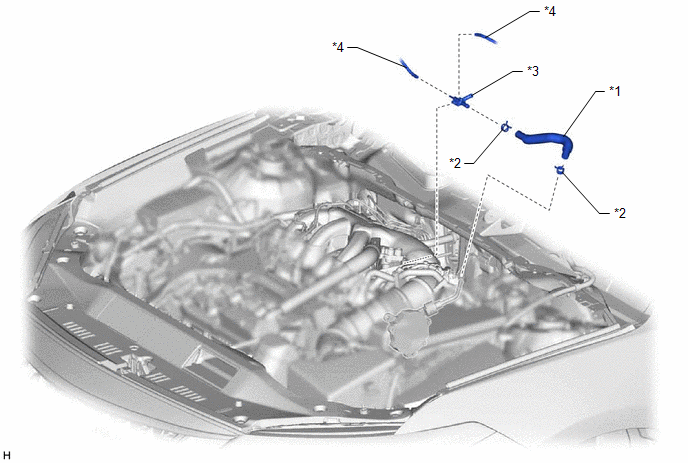

AIR TUBE

*2

CLIP

*3

AIR DELIVERY WAY

*4

VACUUM TRANSMITTING HOSE ASSEMBLY
    Brake Vacuum Hose(for Gasoline Model)
