COMPONENTS

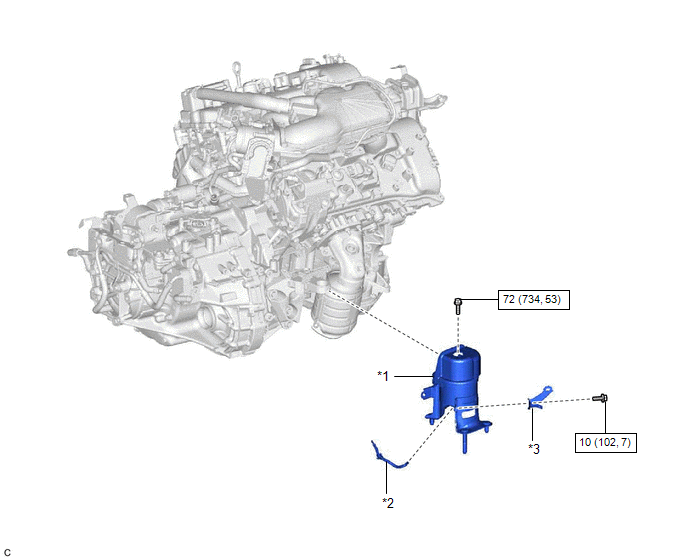

ILLUSTRATION

*1	REAR ENGINE MOUNTING INSULATOR	*2	VACUUM HOSE
*3	WIRE HARNESS CLAMP BRACKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
