REMOVAL

PROCEDURE

1. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Click here

2. REMOVE FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY

Click here

3. REMOVE UNION TO CHECK VALVE HOSE

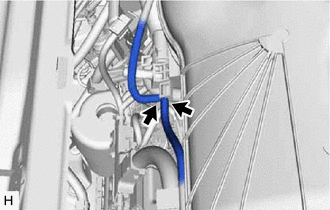

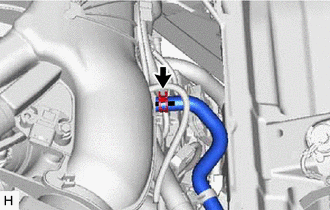

(a) Disengage the clamp to separate the union to check valve hose from the air tube.

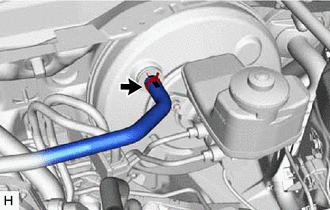

(b) Slide the clip and disconnect the union to check valve hose from the brake booster assembly.

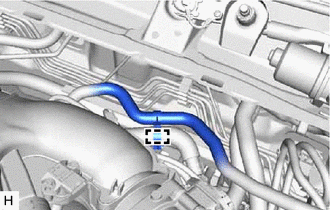

(c) Slide the clip and disconnect the union to check valve hose from the air delivery way.

(d) Remove the 2 clips from the union to check valve hose.

4. REMOVE AIR TUBE

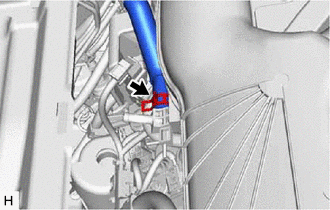

(a) Disconnect the 2 vacuum transmitting hose assemblies from the air delivery way.

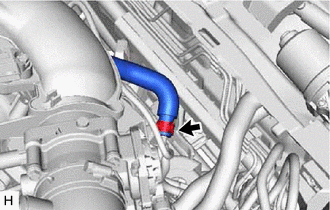

(b) Slide the clip and disconnect the air tube from the vacuum pump assembly.

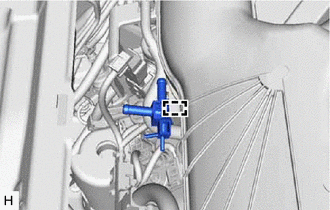

(c) Slide the clip and disconnect the air tube from the air delivery way.

(d) Remove the 2 clips from the air tube.

(e) Disengage the clamp to remove the air delivery way from the intake air surge tank assembly.
    Installation
