INSPECTION

PROCEDURE

1. INSPECT CAMSHAFT TIMING GEAR BOLT

(a) Check the stroke of the plunger in the center of the camshaft timing gear bolt.

Standard Stroke:

4.5 mm (0.177 in.) or more

HINT:

When pressing the plunger, there may be a stepped feeling. This is not a malfunction.

If the result is not as specified, replace the camshaft timing gear bolt.

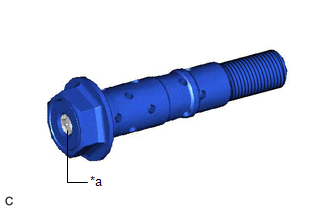

*a

Plunger
