COMPONENTS

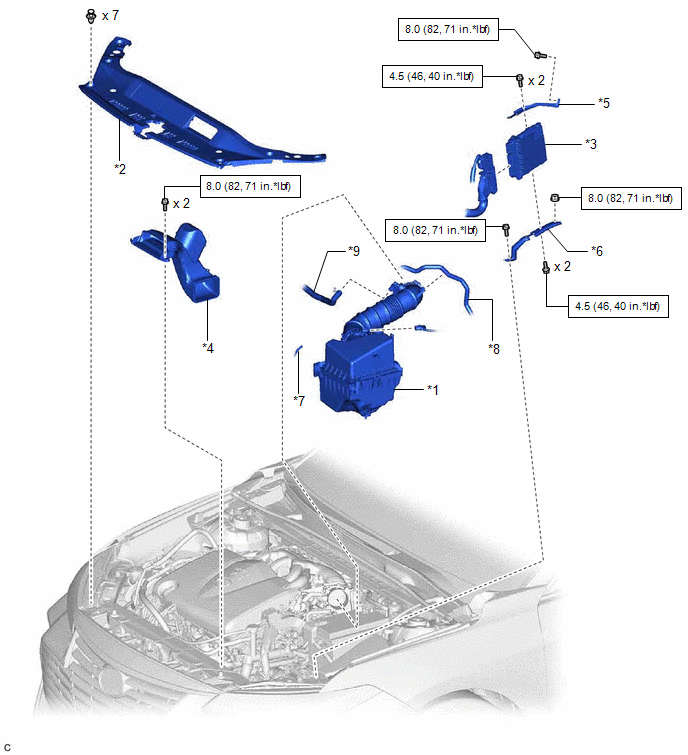

ILLUSTRATION

*1

AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

*2

COOL AIR INTAKE DUCT SEAL

*3

ECM

*4

INLET AIR CLEANER ASSEMBLY

*5

NO. 1 ECM BRACKET

*6

NO. 2 ECM BRACKET

*7

VACUUM HOSE

*8

NO. 1 FUEL VAPOR FEED HOSE

*9

NO. 2 VENTILATION HOSE

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
    Ecm

    Installation
