REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine coolant temperature sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of engine coolant temperature sensor

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

1. DRAIN ENGINE COOLANT

Click here

2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

Click here

3. REMOVE ENGINE COOLANT TEMPERATURE SENSOR

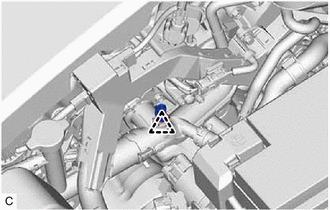

(a) Disconnect the engine coolant temperature sensor connector.

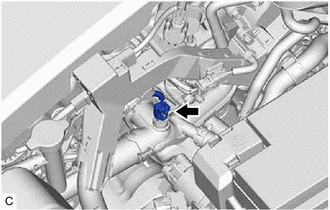

(b) Remove the clip and engine coolant temperature sensor from the water outlet.

NOTICE:

If the engine coolant temperature sensor has been struck or dropped, replace it.
