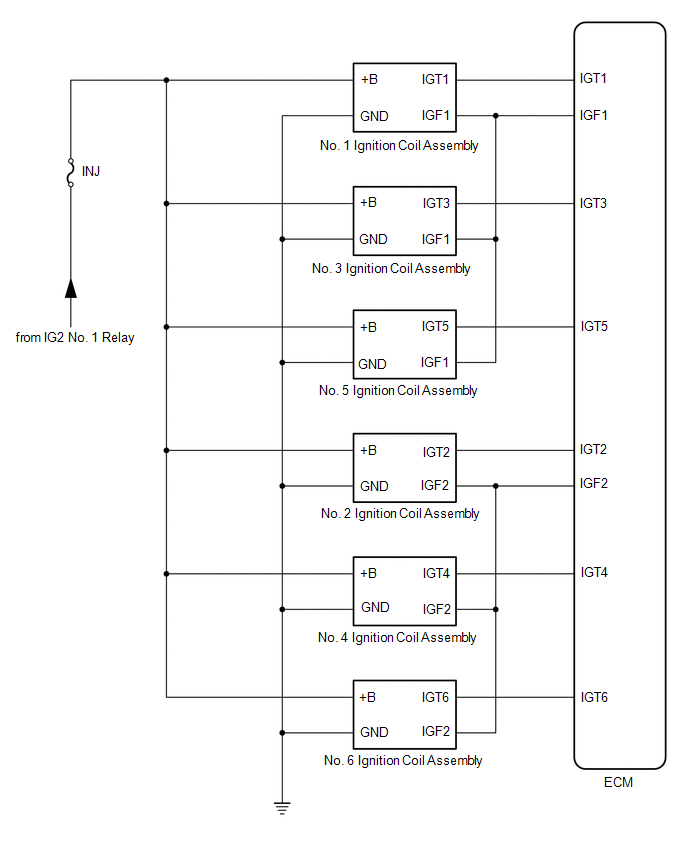

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: System Diagram

Parts Location

Knock Sensor

See More:

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Airbag System(for Gasoline Model): System Diagram
SYSTEM DIAGRAM Communication Table Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method Airbag ECU Assembly Occupant Detection ECU Crash detection signal Acceleration signal CAN Airbag ECU Assembly ECM Crash detection signal Airbag ECU Assembly Combination Meter Assembly SRS warn ...
