REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during knock control sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
*: When performing learning using the Techstream.

Click here

Battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Departure Alert System (w/ Steering Control)

Pre-collision System

Intelligent Clearance Sonar System*

Lighting System (for Gasoline Model with Cornering Light)

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

  • Replacement of fuel injector assembly (for Port Injection)
  • Replacement of fuel injector assembly (for Direct Injection)
  • Replacement of throttle body with motor assembly
  • Cleaning the deposits from the throttle body with motor assembly
  • Replacement of knock control sensor

Inspection after repair
  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

1. REMOVE FUEL DELIVERY PIPE

Click here

2. REMOVE KNOCK CONTROL SENSOR

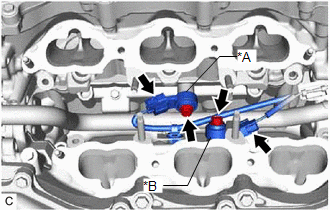

(a) Disconnect the 2 knock control sensor connectors.

*A

for Bank 1

*B

for Bank 2

(b) Remove the 2 bolts and 2 knock control sensors from the cylinder block sub-assembly.

NOTICE:

If a knock control sensor has been struck or dropped, replace it.
