Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during mass air flow meter sub-assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of mass air flow meter sub-assembly

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

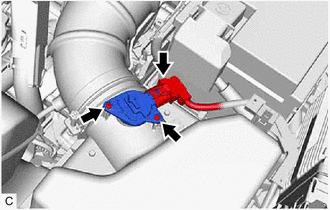

1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

(a) Disconnect the mass air flow meter sub-assembly connector.

(b) Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.

NOTICE:

If the mass air flow meter sub-assembly has been struck or dropped, replace it.
