DESCRIPTION

Problem Symptom	Suspected Area	Trouble Area
Engine speed fluctuation due to abnormal combustion Idle speed too low or high Strong engine vibration due to above symptoms	Ignition malfunction Deviation in air fuel ratio (Excessive or insufficient intake air volume or fuel supply) Insufficient compression Changes in load from another system	Ignition system	Spark plug Ignition coil assembly
		Fuel system	Fuel injector assembly (for direct injection) Fuel injector assembly (for port injection) Fuel pump assembly (for high pressure side) Fuel pump (for low pressure side) Fuel pump control circuit Fuel suction plate sub-assembly Fuel line Fuel main valve assembly Purge VSV system Fuel quality (existence of foreign matter, degradation)
		Intake and exhaust systems	Mass air flow meter sub-assembly Intake system (Air leaks or deposit accumulation) Throttle body with motor assembly Air fuel ratio sensor Heated oxygen sensor Cam timing oil control solenoid assembly Camshaft timing oil control valve assembly Variable Valve Timing system (VVT-i, VVT-iW system)
		Other control systems	ECM Wire harness or connector Knock control sensor Engine coolant temperature sensor
		Engine	Water inlet with thermostat sub-assembly Engine assembly
		High load from another system	Air conditioning system Power steering system Electrical load signal system A/T system

HINT:

If any other DTCs are output, perform troubleshooting for those DTCs first.
Make sure to reproduce the conditions present when the malfunction occurred.
Using the Techstream, read the Data List to confirm the engine operating conditions. This information can be useful when troubleshooting.
If the problem symptoms do not recur, attempt to reproduce the symptoms and conditions when the malfunction occurred based on the result of the customer problem analysis. Place the priority on confirming the symptoms.

SYMPTOM AND CAUSE OF SYSTEM MALFUNCTION

HINT:

The following are descriptions of the characteristics of each system malfunction. After understanding the link between the causes and symptoms, perform the inspection of each component. Even if the problem symptom does not recur, signs of the malfunction may be found in the Data List.

(a) Ignition system

Spark plug

Main cause of malfunction	Performance degradation (wear, existence of foreign matter, etc.)
Symptom	Engine speed fluctuation due to abnormal combustion
Data List	Misfire Count Cylinder #1 to #6
HINT: If the spark plug of the malfunctioning cylinder is abnormally wet with fuel, a leaking fuel injector assembly is suspected.

Ignition coil assembly

Main cause of malfunction	Internal malfunction
Problem symptom	Engine speed fluctuation due to abnormal combustion
Data List	Misfire Count Cylinder #1 to #6

(b) Fuel system

Fuel injector assembly

Main cause of malfunction	Blockage
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high
Data List	Short FT B1S1, B2S1 Long FT B1S1, B2S1 Fuel System Status Bank 1, Bank 2 Target Air-Fuel Ratio A/F (O2) Lambda Sensor B1S1, B2S1 A/F Learn Value Idle (Port) Bank 1, Bank 2 A/F Learn Value Low (Port) Bank 1, Bank 2 A/F Learn Value Mid No.1 (Port) Bank 1, Bank 2 A/F Learn Value Mid No.2 (Port) Bank 1, Bank 2 A/F Learn Value High (Port) Bank 1, Bank 2 A/F Learn Value Idle Bank 1, Bank 2 A/F Learn Value Low Bank 1, Bank 2 A/F Learn Value Mid No.1 Bank 1, Bank 2 A/F Learn Value Mid No.2 Bank 1, Bank 2 A/F Learn Value High Bank 1, Bank 2 A/F Learn Value Low (Dual) Bank 1, Bank 2 A/F Learn Value Mid (Dual) No.1 Bank 1, Bank 2 A/F Learn Value Mid (Dual) No.2 Bank 1, Bank 2 A/F Learn Value High (Dual) Bank 1, Bank 2 Total FT Bank 1, Bank 2
HINT: If the engine malfunction disappears when the fuel injection volume is increased or decreased using the Control the Injection Volume, the respective cylinder may be malfunctioning.

Purge VSV

Main cause of malfunction	Purge VSV stuck open
Symptom	Engine speed fluctuation due to abnormal combustion
Data List	EVAP (Purge) VSV Evap Purge Flow EVAP Purge Density Learn Value EVAP Purge VSV Purge Cut VSV Duty

Fuel system

HINT:

If the air fuel ratio becomes lean only when the engine is running under a high load and at a high engine speed, clogging of the fuel pump or fuel filter is suspected.

Fuel quality

Main cause of malfunction	Fuel degradation due to age or water contamination Low fuel quality Addition of fuel additive
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high Engine is difficult to start

Mass air flow meter sub-assembly

Main cause of malfunction	Performance degradation (existence of foreign matter, etc.)
Problem symptom	Lack of power
Data List	Mass Air Flow Sensor
HINT: If the value of the Data List item "Mass Air Flow Sensor" is abnormal, a malfunction of the mass air flow meter sub-assembly is suspected.

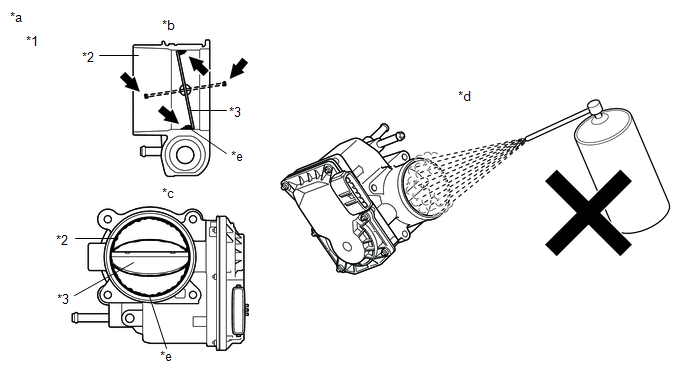

Throttle system

Main cause of malfunction	Inappropriate trim volume adjustment due to accumulation of deposits
Problem symptom	Engine speed fluctuation due to abnormal combustion Idle speed too low or high
Data List	Engine Stall Control F/B Flow ISC F/B Learn Torque ISC Total AUXS Torque ISC F/B Torque Sum of ISC F/B Torque (Recent) ISC AUXS Torque (Alternator) ISC AUXS Torque (Air Conditioner) Throttle Air Flow F/B Value

Air fuel ratio sensor, Heated oxygen sensor

Main cause of malfunction	Deviation in sensor characteristics
Problem symptom	Abnormal combustion due to deviation of actual air fuel ratio from calculated ratio
Data List	A/F (O2) Sensor Voltage B1S1, B2S1 O2 Sensor Voltage B1S2, B2S2 Fuel System Status Bank 1, Bank 2

(d) Engine

Engine assembly

Main cause of malfunction

Compression loss
Accumulation of deposits
(Combustion chamber, intake valve or intake manifold)

Problem symptom

Engine speed fluctuation due to abnormal combustion
Idle speed too low or high
Hesitation during acceleration or stalling

HINT:

If deposits have accumulated in the combustion chamber or on an intake valve, the engine may stall when deposits are caught on an intake valve.
When performing the Active Test "Check the Cylinder Compression", if the speed of one cylinder is higher than the others, the cylinder may have a compression loss.
If deposits accumulate on the intake valves, the supply of fuel may be delayed due to adherence of the fuel to the deposits, causing a rough idle.

VVT

Main cause of malfunction	Camshaft timing oil control valve assembly stuck open
Symptom	Abnormal combustion due to excessive valve overlap
Data List	VVT Advance Fail Intake VVT Hold Correct Learn Value Bank 1 (Area 1), Bank 2 (Area 1) Intake VVT Hold Correct Learn Value Bank 1 (Area 2), Bank 2 (Area 2) Intake VVT Change Angle Bank 1, Bank 2 Intake VVT OCV Control Duty Ratio Bank 1, Bank 2 Exhaust VVT Hold Learn Value Bank 1, Bank 2 Exhaust VVT Change Angle Bank 1, Bank 2 Exhaust VVT OCV Control Duty Ratio Bank 1, Bank 2 Intake VVT Target Angle Bank 1, Bank 2 Exhaust VVT Target Angle Bank 1, Bank 2

Data List Items Related to Engine Stalls

HINT:

Depending on the vehicle model, the applicable Data List items may vary. Data List items other than the ones used in the diagnostic procedure are for reference only.

Engine Stall Control F/B Flow
ISC F/B Learn Torque
ISC Total AUXS Torque
ISC F/B Torque
Sum of ISC F/B Torque (Recent)
ISC AUXS Torque (Alternator)
ISC AUXS Torque (Air Conditioner)
Throttle Air Flow F/B Value
Short FT B1S1, B2S1
Long FT B1S1, B2S1
Fuel System Status Bank 1, Bank 2
Target Air-Fuel Ratio
A/F (O2) Lambda Sensor B1S1, B2S1
A/F Learn Value Idle (Port) Bank 1, Bank 2
A/F Learn Value Low (Port) Bank 1, Bank 2
A/F Learn Value Mid No.1 (Port) Bank 1, Bank 2
A/F Learn Value Mid No.2 (Port) Bank 1, Bank 2
A/F Learn Value High (Port) Bank 1, Bank 2
A/F Learn Value Idle Bank 1, Bank 2
A/F Learn Value Low Bank 1, Bank 2
A/F Learn Value Mid No.1 Bank 1, Bank 2
A/F Learn Value Mid No.2 Bank 1, Bank 2
A/F Learn Value High Bank 1, Bank 2
A/F Learn Value Low (Dual) Bank 1, Bank 2
A/F Learn Value Mid (Dual) No.1 Bank 1, Bank 2
A/F Learn Value Mid (Dual) No.2 Bank 1, Bank 2
A/F Learn Value High (Dual) Bank 1, Bank 2
Total FT Bank 1, Bank 2
Fuel Pressure (High)
Fuel Pressure (Low)
High Pressure Fuel Pump Duty Ratio (D4)
Target Fuel Pressure (High)
Target Fuel Pressure (Low)
High Pressure Fuel Pump Discharge Rate
Mass Air Flow Sensor
Misfire Count Cylinder #1 to #6
A/F (O2) Sensor Voltage B1S1, B2S1
O2 Sensor Voltage B1S2, B2S2
VVT Advance Fail
Intake VVT Hold Correct Learn Value Bank 1 (Area 1), Bank 2 (Area 1)
Intake VVT Hold Correct Learn Value Bank 1 (Area 2), Bank 2 (Area 2)
Intake VVT Change Angle Bank 1, Bank 2
Intake VVT OCV Control Duty Ratio Bank 1, Bank 2
Exhaust VVT Hold Learn Value Bank 1, Bank 2
Exhaust VVT Change Angle Bank 1, Bank 2
Exhaust VVT OCV Control Duty Ratio Bank 1, Bank 2
Intake VVT Target Angle Bank 1, Bank 2
Exhaust VVT Target Angle Bank 1, Bank 2

PROCEDURE

1.	INTERVIEW THE CUSTOMER

(a) Interview the customer for details about the conditions when the engine stalled.

HINT:

Use any information from the customer problem analysis about the conditions of the vehicle when the malfunction occurred (how the engine stalled, conditions when the engine was restarted, etc.)

Depending on the conditions when the engine stalled, a malfunction in one of the following areas is suspected.

Symptom	Suspected Area
Engine vibration occurs and engine stalls	Abnormal mass air flow meter sub-assembly output due to existence of foreign matter Abnormal air fuel ratio due to malfunction of air fuel ratio sensor or heated oxygen sensor, air leaks in intake system or insufficient fuel supply
Engine stalls without vibration	Ignition stoppage, fuel injection stoppage or high load from another system
Engine can be started with accelerator pedal depressed	Insufficient air volume
Engine stalls or is difficult to start immediately after engine stalled, regardless of whether engine is cold or warm	Deposits in intake system or combustion chamber caught temporarily on intake or exhaust valve

2.	CHECK DTC OUTPUT

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Perform a road test.

(e) Enter the following menus: Powertrain / Engine / Trouble Codes.

(f) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result

Proceed to

DTCs are not output

DTC is output

(DTCs other than P160300, P160400 or P160500 are output)

GO TO DTC CHART

3.	SYMPTOM CONFIRMATION

(a) Check if the problem symptoms reported in the customer problem analysis recur.

HINT:

If the problem symptoms do not recur, attempt to reproduce the conditions when the malfunction occurred based on the result of the customer problem analysis.

Result	Proceed to
The problem symptom recurs	A
The problem symptom does not recur (occurred in the past)	B

CHECK FOR INTERMITTENT PROBLEMS

4.	READ VALUE USING TECHSTREAM (ISC F/B LEARN TORQUE)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Data List / ISC F/B Learn Torque.

Powertrain > Engine > Data List

Tester Display
ISC F/B Learn Torque

(e) Read the value displayed on the Techstream.

Result	Proceed to
Less than 30 Nm	A
Other than above	B

GO TO STEP 11

5.	READ VALUE USING TECHSTREAM (SHORT FT B1S1 (B2S1) AND LONG FT B1S1 (B2S1))

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Data List / Short FT B1S1, Short FT B2S1, Long FT B1S1 and Long FT B2S1.

Powertrain > Engine > Data List

Tester Display
Short FT B1S1
Short FT B2S1
Long FT B1S1
Long FT B2S1

(e) Read the value displayed on the Techstream.

Data List	Result	Proceed to
Short FT B1S1 (B2S1) + Long FT B1S1 (B2S1)	-15% or higher, or less than 15%	A
Short FT B1S1 (B2S1) + Long FT B1S1 (B2S1)	Other than above	B

HINT:

"Total FT Bank 1 (Bank 2)" is used to detect an abnormal air fuel ratio. As the value of "Total FT Bank 1 (Bank 2)" is corrected by the ECM before it is displayed in the Data List, the displayed value may not be equal to the sum of the measured "Short FT B1S1 (B2S1)" and "Long FT B1S1 (B2S1)".
An abnormally lean or rich tendency can be checked by reading the following Data List items: A/F Learn Value Idle (Port) Bank 1, A/F Learn Value Idle (Port) Bank 2, A/F Learn Value Low (Port) Bank 1, A/F Learn Value Low (Port) Bank 2, A/F Learn Value Mid No.1 (Port) Bank 1, A/F Learn Value Mid No.1 (Port) Bank 2, A/F Learn Value Mid No.2 (Port) Bank 1, A/F Learn Value Mid No.2 (Port) Bank 2, A/F Learn Value High (Port) Bank 1, A/F Learn Value High (Port) Bank 2, A/F Learn Value Idle Bank 1, A/F Learn Value Idle Bank 2, A/F Learn Value Low Bank 1, A/F Learn Value Low Bank 2, A/F Learn Value Mid No.1 Bank 1, A/F Learn Value Mid No.1 Bank 2, A/F Learn Value Mid No.2 Bank 1, A/F Learn Value Mid No.2 Bank 2, A/F Learn Value High Bank 1, A/F Learn Value High Bank 2, A/F Learn Value Low (Dual) Bank 1, A/F Learn Value Low (Dual) Bank 2, A/F Learn Value Mid (Dual) No.1 Bank 1, A/F Learn Value Mid (Dual) No.1 Bank 2, A/F Learn Value Mid (Dual) No.2 Bank 1, A/F Learn Value Mid (Dual) No.2 Bank 2, A/F Learn Value High (Dual) Bank 1 and A/F Learn Value High (Dual) Bank 2. (For vehicles equipped with a V type engine, check that both banks have the same correction tendency.) If the correction of either bank is -15% or less or 15% or higher, the air fuel ratio sensor or heated oxygen sensor of that bank may be malfunctioning.
The following may cause a lean air fuel ratio (an operating range in which the air fuel ratio learned value correction is 15% or higher):
1. Decrease in fuel injector assembly injection volume
2. Decrease in mass air flow meter sub-assembly output (due to existence of foreign matter)
3. Air leaks in intake system after mass air flow meter sub-assembly
4. Decrease in fuel pressure (at fuel filter, fuel pump, fuel main valve assembly or fuel suction plate sub-assembly)
On vehicles which the learning value for each operating range can be checked, if the value of "A/F Learn Value High (Port) Bank 1 (Bank 2)", "A/F Learn Value High Bank 1 (Bank 2)" or "A/F Learn Value High (Dual) Bank 1 (Bank 2)"only is corrected to the positive side, a malfunction in the fuel system (clogging of the fuel pump or fuel filter) is suspected.
On vehicles which the learning value for each operating range can be checked, if the value of "A/F Learn Value Idle (Port) Bank 1 (Bank 2)", "A/F Learn Value Low (Port) Bank 1 (Bank 2)", "A/F Learn Value Idle Bank 1 (Bank 2)", "A/F Learn Value Low Bank 1 (Bank 2)" or "A/F Learn Value Low (Dual) Bank 1 (Bank 2)" only is corrected to the positive side, an air leak after the mass air flow meter sub-assembly is suspected.
The following may cause a rich air fuel ratio (an operating range in which the air fuel ratio learned value correction is -15% or less):
1. Increase in the fuel injector assembly injection volume
2. Purge VSV system

GO TO STEP 15

6.	PERFORM ACTIVE TEST USING TECHSTREAM (D-4S (FUEL CUT))

(a) Connect the Techstream to the DLC3.

(b) Start the engine.

HINT:

Reproduce the vehicle conditions when the malfunction occurred. (such as after the engine is warmed up or after a cold start).

(d) Enter the following menus: Powertrain / Engine / Active Test / D-4S (Fuel Cut) / Data List / Engine Speed.

Powertrain > Engine > Active Test

Active Test Display
D-4S (Fuel Cut)

Data List Display
Engine Speed

(e) According to the display on the Techstream, perform the Active Test and check for a malfunctioning cylinder.

HINT:

Perform fuel-cut of port injection and direct injection for each cylinder and check the change in the engine speed.
If the engine speed of a cylinder does not change while performing the Active Test, it can be determined that the cylinder is malfunctioning.
If the engine speed of all cylinders change while performing the Active Test, it can be determined that multiple cylinders are malfunctioning.
A cylinder for which the Data List item "Misfire Count Cylinder #1 to #6" increases may be malfunctioning.
If "Compression Leakage Count" in the Data List increases, misfiring due to insufficient compression may be occurring.

Result	Proceed to
One cylinder is malfunctioning	A
Multiple or all cylinders are malfunctioning, or the malfunctioning cylinder cannot be determined.	B

GO TO STEP 15

7.	PERFORM ACTIVE TEST USING TECHSTREAM (CHECK THE CYLINDER COMPRESSION)

HINT:

If the vehicle does not support the Active Test "Check the Cylinder Compression", measure the compression pressure. If the compression pressure is normal, go to step 8 (PERFORM ACTIVE TEST USING TECHSTREAM (D-4S (INJECTION VOLUME))).

(a) Warm up the engine.

(b) Turn the engine switch off.

(d) Turn the engine switch on (IG).

(e) Turn the Techstream on.

(f) Enter the following menus: Powertrain / Engine / Active Test / Check the Cylinder Compression / Data List / Compression / Engine Speed Cylinder #1 to #6 and Average Engine Speed of All Cylinder.

Powertrain > Engine > Active Test

Active Test Display
Check the Cylinder Compression

Data List Display
Engine Speed Cylinder #1
Engine Speed Cylinder #2
Engine Speed Cylinder #3
Engine Speed Cylinder #4
Engine Speed Cylinder #5
Engine Speed Cylinder #6
Average Engine Speed of All Cylinder

HINT:

To display the entire Data List, press the pull down menu button next to Primary. Then select Compression.

(g) Push the snapshot button to turn the snapshot function on.

HINT:

Using the snapshot function, data can be recorded during the Active Test.

(h) While the engine is not running, press the Active button to change Check the Cylinder Compression to "Start".

HINT:

After performing the above procedure, Check the Cylinder Compression will start. Fuel injection for all cylinders is prohibited and each cylinder engine speed measurement enters standby mode.

(i) Crank the engine for about 10 seconds.

(j) Monitor the engine speed (Engine Speed Cylinder #1 to #6 and Average Engine Speed of All Cylinder) displayed on the Techstream.

HINT:

At first, the Techstream will display extremely high cylinder engine speed values. After approximately 10 seconds of engine cranking, the engine speed measurement of each cylinder will change to the actual engine speed.
If the cylinder engine speed values (Engine Speed Cylinder #1 to #6) displayed in the Data List do not change from an extremely high value, return to the Active Test menu screen, change "Check the Cylinder Compression" to "Start" and crank the engine again within 1 second.

NOTICE:

Do not crank the engine continuously for 20 seconds or more.
If it is necessary to crank the engine again after Check the Cylinder Compression has been changed to "Start" and the engine has been cranked once, press Exit to return to the Active Test menu screen. Then change Check the Cylinder Compression to "Start" and crank the engine.
Use a fully-charged battery.

(k) Stop cranking the engine, and then change "Check the Cylinder Compression" to "Stop" after the engine stops.

NOTICE:

If the Active Test is changed to "Stop" while the engine is being cranked, the engine will start.
When performing the Active Test, DTC P160400 (Startability Malfunction) may be stored.
After performing the Active Test, make sure to check and clear DTCs.

(l) Push the snapshot button to turn the snapshot function off.

(m) Select "Stored Data" on the Techstream screen, select the recorded data and display the data as a graph.

HINT:

If the data is not displayed as a graph, the change of the values cannot be observed.

(n) Read the value.

HINT:

If the value of Data List item "Engine Speed Cylinder" of a cylinder is higher than other cylinders, the cylinder may be malfunctioning.
If the value of Data List item "Engine Speed Cylinder" is high for only one cylinder, compression loss is suspected.

Result

Proceed to

There is no variation in "Engine Speed Cylinder"

(All cylinders display approximately the same value for "Engine Speed Cylinder")

There is variation in "Engine Speed Cylinder"

(Only one cylinder displays a value for "Engine Speed Cylinder" that differs considerably)

GO TO STEP 13

8.	PERFORM ACTIVE TEST USING TECHSTREAM (D-4S (INJECTION VOLUME))

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off.

(e) Idle the engine.

(f) Enter the following menus: Powertrain / Engine / Active Test / D-4S (Injection Volume) / Data List / Coolant Temperature.

Powertrain > Engine > Active Test

Active Test Display
D-4S (Injection Volume)

Data List Display
Coolant Temperature

(g) According to the display on the Techstream, perform the Active Test and check the vehicle conditions when increasing and decreasing the fuel injection volume of port injection and direct injection.

HINT:

Increase and decrease the fuel injection volume of the port injection and direct injection simultaneously and check the vehicle condition.
Change the fuel injection volume between the minimum and maximum range of correction (e.g. -12.5% to 24.8%).

Result	Proceed to
Malfunction is still present even if the fuel injection volume is changed	A
Malfunction disappears when the fuel injection volume is changed	B

GO TO STEP 14

9.	CHECK IGNITION SYSTEM

(a) Check the ignition system.

HINT:

Interchange the ignition coil assembly and spark plug of the malfunctioning cylinder with those of a known good cylinder and check if the malfunctioning cylinder returns to normal.
If the spark plug of the malfunctioning cylinder is abnormally wet with fuel even after the ignition coil assembly and spark plug are replaced, a leaking fuel injector assembly is suspected.

Result	Proceed to
The malfunctioning cylinder does not return to normal	A
The malfunctioning cylinder returned to normal	B

GO TO STEP 26

10.	INSPECT OTHER RELATED COMPONENTS

(a) Check the power source circuit, wire harness and connectors.

GO TO STEP 26

11.	REMOVE FOREIGN OBJECT (CLEAN THROTTLE BODY WITH MOTOR ASSEMBLY)

(a) Clean off any deposits from the inside of the throttle body with motor assembly.

(b) Push open the throttle valve and wipe off any carbon from the valve and bore using a piece of cloth soaked in non-residue solvent.

*1	Throttle Body with Motor Assembly	*2	Bore
*3	Valve	-	-
*a	Reference	*b	Throttle Body with Motor Assembly Cross-section Diagram
*c	When valve fully opened	*d	Do not directly apply cleaner
*e	Deposits	-	-

NOTICE:

Make sure that the cloth or your fingers do not get caught in the valve.
Make sure that foreign matter does not enter the throttle valve.
Do not directly apply non-residue solvent to the throttle body with motor assembly or wash the throttle body with motor assembly. Cleaning solvent may leak into the motor from the shaft and cause problems such as rust or valve movement problems.
If there is coating material on the edge of the valve, be careful not to remove it.

HINT:

The illustrations are for reference only. Actual parts may differ.

12.	PERFORM CONFIRMATION DRIVING PATTERN

(a) Perform "Inspection After Repair" after cleaning the throttle body with motor assembly.

Click here

(b) Connect the Techstream to the DLC3.

(d) Turn the Techstream on.

(e) Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

(f) Allow the engine to idle for 3 minutes or more and confirm that the engine speed is within the specified range.

HINT:

If the engine is operated without performing learning value reset and idle learning after cleaning the deposits from the throttle body with motor assembly, the idle speed may increase.

GO TO STEP 27

13.	CHECK CYLINDER COMPRESSION PRESSURE

(a) Measure the cylinder compression pressure. If the compression pressure of a cylinder is low, inspect the engine assembly and repair or replace parts as necessary.

Click here

GO TO STEP 26

14.	REPLACE FUEL INJECTOR ASSEMBLY

(a) Replace the abnormal fuel injector assembly.

HINT:

If the air fuel ratio learned value is corrected to the positive side for all operating ranges due to low fuel injector assembly injection volume, replace the fuel injector assemblies of all cylinders.
Perform "Inspection After Repair" after replacing the fuel injector assembly.
Click here

GO TO STEP 27

15.	READ VALUE USING TECHSTREAM (MASS AIR FLOW SENSOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the Techstream on.

(c) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off.

(d) Enter the following menus: Powertrain / Engine / Data List / Mass Air Flow Sensor and Coolant Temperature.

Powertrain > Engine > Data List

Tester Display
Mass Air Flow Sensor
Coolant Temperature

(e) According to the display on the Techstream, read the Data List when the engine is running.

Result

Proceed to

Idling (without load): 2.6 to 3.7 gm/sec

Engine speed 2000 rpm (without load): 5.4 to 9.6 gm/sec

Engine speed 3000 rpm (without load): 10.6 to 15.8 gm/sec

Other than above

GO TO STEP 19

16.	PERFORM ACTIVE TEST USING TECHSTREAM (D-4S (INJECTION VOLUME))

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off.

(e) Warm up the air fuel ratio sensor at an engine speed of 2500 rpm for 90 seconds.

(f) Idle the engine.

(g) Enter the following menus: Powertrain / Engine / Active Test / D-4S (Injection Volume) / Data List / Coolant Temperature, A/F (O2) Sensor Voltage B1S1, A/F (O2) Sensor Voltage B2S1, O2 Sensor Voltage B1S2 and O2 Sensor Voltage B2S2.

Powertrain > Engine > Active Test

Active Test Display
D-4S (Injection Volume)

Data List Display
Coolant Temperature
A/F (O2) Sensor Voltage B1S1
A/F (O2) Sensor Voltage B2S1
O2 Sensor Voltage B1S2
O2 Sensor Voltage B2S2

(h) According to the display on the Techstream, perform the Active Test and check the vehicle conditions when increasing and decreasing the fuel injection volume of port injection and direct injection.

NOTICE:

The air fuel ratio sensor has an output delay of a few seconds and the heated oxygen sensor has a maximum output delay of approximately 20 seconds.
Read the output voltage immediately after warming up the air fuel ratio sensor and heated oxygen sensor to avoid an inaccurate reading due to a sensor cooling.

HINT:

Increase and decrease the fuel injection volume of the port injection and direct injection simultaneously and check the vehicle condition.
Change the fuel injection volume between the minimum and maximum range of correction (e.g. -12.5% to 24.8%).

Standard:

Techstream Display (Sensor)	Injection Volume	Voltage
A/F (O2) Sensor Voltage B1S1 A/F (O2) Sensor Voltage B2S1 (Air fuel ratio)	24.8%	Below 3.1 V
	-12.5%	Higher than 3.4 V
O2 Sensor Voltage B1S2 O2 Sensor Voltage B2S2 (Heated oxygen)	24.8%	Higher than 0.55 V
	-12.5%	Below 0.4 V

Result	Proceed to
Output voltage values are abnormal	A
Malfunction disappears when fuel injection volume is increased	B
Malfunction is still present when fuel injection volume is increased, even if output voltage values are normal	C

GO TO STEP 18

GO TO STEP 20

17.	REPLACE AIR FUEL RATIO SENSOR AND HEATED OXYGEN SENSOR

(a) Replace the air fuel ratio sensor.

Click here

HINT:

Perform "Inspection After Repair" after replacing the air fuel ratio sensor.

Click here

(b) Replace the heated oxygen sensor.

Click here

HINT:

Perform "Inspection After Repair" after replacing the heated oxygen sensor.

Click here

GO TO STEP 27

18.	REPLACE FUEL INJECTOR ASSEMBLY

(a) Replace the fuel injector assemblies of all cylinders.

HINT:

Perform "Inspection After Repair" after replacing the fuel injector assembly.

Click here

GO TO STEP 27

19.	CHECK INTAKE SYSTEM

(a) Check for air leaks or blockage in the intake system components. If a connection problem or foreign matter is found, repair the connection or remove the foreign matter.

HINT:

If there is foreign matter in the intake system components, remove it before proceeding to the next step.
If there is no foreign matter in the intake system components, check for foreign matter in the mass air flow meter sub-assembly. If there is foreign matter in the mass air flow meter sub-assembly, remove it.

GO TO STEP 26

20.	PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE CIRCUIT RELAY)

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Active Test / Activate the Circuit Relay.

Powertrain > Engine > Active Test

Tester Display
Activate the Circuit Relay

(e) When performing the Active Test, check for an operating sound from the fuel pump (for low pressure side).

OK:

Activate the Circuit Relay	Specified Condition
ON	Operating sound heard
OFF	Operating sound not heard

GO TO STEP 25

21.	INSPECT FUEL PUMP (FOR LOW PRESSURE SIDE)

(a) Attach a fuel pressure gauge and check the fuel pressure when cranking the engine and after stopping the engine.

Click here

Standard:

Vehicle State	Specified Condition
Cranking engine	196 to 833 kPa (2.0 to 8.5 kgf/cm2, 28 to 121 psi)
5 minutes after stopping engine	98 kPa (1.0 kgf/cm2, 14 psi) or higher

HINT:

If there is foreign matter such as iron particles on the fuel pump, remove it.
Make sure that there are no leaks from the fuel lines, signs of fuel leakage or fuel odors.

GO TO STEP 24

22.	READ VALUE USING TECHSTREAM (FUEL PRESSURE (HIGH))

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(d) Start the engine and warm it up.

(e) Enter the following menus: Powertrain / Engine / Data List / Engine Speed, Coolant Temperature, Fuel Pressure (High) and Injection Mode.

Powertrain > Engine > Data List

Tester Display
Engine Speed
Coolant Temperature
Fuel Pressure (High)
Injection Mode

(f) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off.

(g) According to the display on the Techstream, read the Data List.

Standard:

Techstream Display	Condition	Specified Condition
Fuel Pressure (High)	Shift position: P A/C: Off Engine warmed up Engine Speed: 3000 rpm Injection Mode: Direct	2400 to 20000 kPag

GO TO STEP 26

23.	INSPECT OTHER RELATED COMPONENTS

(a) Inspect other related components.

HINT:

If the malfunctioning part could not be determined by performing the preceding inspections, one of the following malfunctions is suspected.

Deposits in the intake manifold or on an intake valve
Delay in fuel supply due to adherence of the fuel to the deposits

GO TO STEP 26

24.	INSPECT RELATED PARTS

(a) Inspect the following fuel pump related parts:

Fuel suction plate sub-assembly
Fuel main valve assembly
Fuel lines and connecting parts
Fuel filter

GO TO STEP 26

25.	INSPECT FUEL PUMP CONTROL SYSTEM

(a) Inspect the fuel pump control system.

26.	REPAIR OR REPLACE MALFUNCTIONING PARTS

(a) Repair or replace the malfunctioning part.

(b) Perform "Inspection After Repair" after repairing or replacing the malfunctioning part.

Click here

27.	CONDUCT CONFIRMATION TEST

(a) Check that the engine has returned to normal.

END

Engine Difficult to Start

EVAP System

See More:

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual > Airbag System(for Gasoline Model): Airbag ECU Malfunction1 (B1160-B1167)
DESCRIPTION The airbag ECU assembly consists of the acceleration sensor, safing sensor, drive circuit, diagnosis circuit, ignition control, etc. If the airbag ECU assembly receives signals from the acceleration sensor and pressure sensor, it determines whether the airbags and pretensioners should be ...

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Engine Stalls

Engine Difficult to Start

EVAP System

See More:

Toyota Avalon (XX50) 2019-2022 Owners Manual

Toyota Avalon (XX50) 2019-2022 Service & Repair Manual
