COMPONENTS

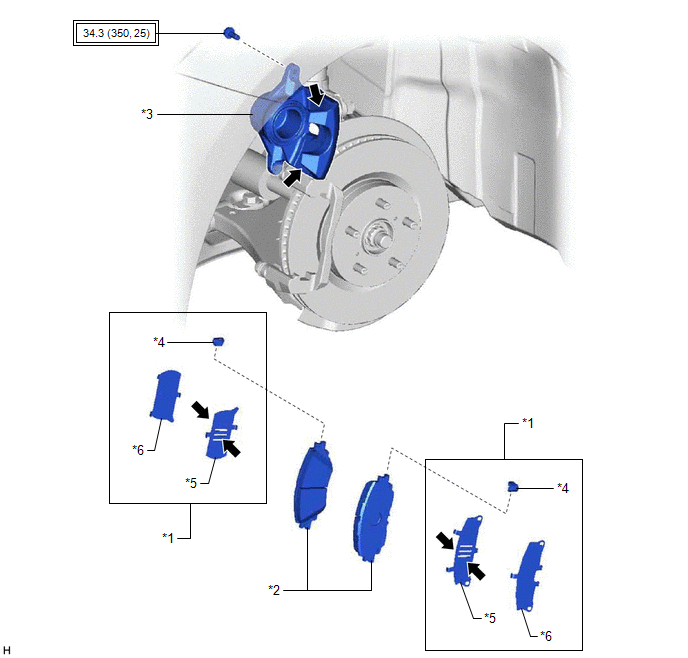

ILLUSTRATION

*1

FRONT DISC BRAKE ANTI-SQUEAL SHIM KIT

*2

FRONT DISC BRAKE PAD

*3

FRONT DISC BRAKE CYLINDER ASSEMBLY

*4

FRONT DISC BRAKE PAD WEAR INDICATOR PLATE

*5

FRONT NO. 1 DISC BRAKE ANTI-SQUEAL SHIM

*6

FRONT NO. 2 DISC BRAKE ANTI-SQUEAL SHIM

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Disc brake grease
    Front Disc Brake Pad

    Installation
