COMPONENTS

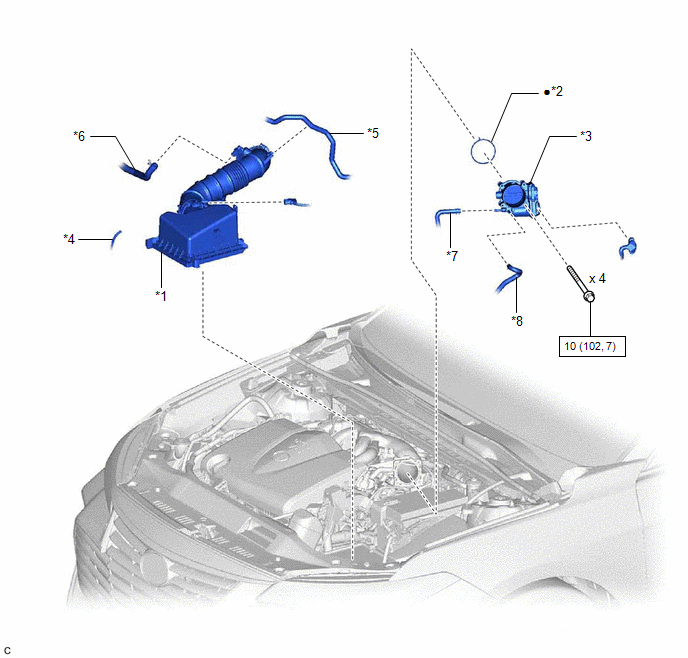

ILLUSTRATION

*1

AIR CLEANER CAP WITH AIR CLEANER HOSE

*2

THROTTLE BODY GASKET

*3

THROTTLE BODY WITH MOTOR ASSEMBLY

*4

VACUUM HOSE

*5

NO. 1 FUEL VAPOR FEED HOSE

*6

NO. 2 VENTILATION HOSE

*7

NO. 2 WATER BY-PASS HOSE

*8

NO. 3 WATER BY-PASS HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
