COMPONENTS

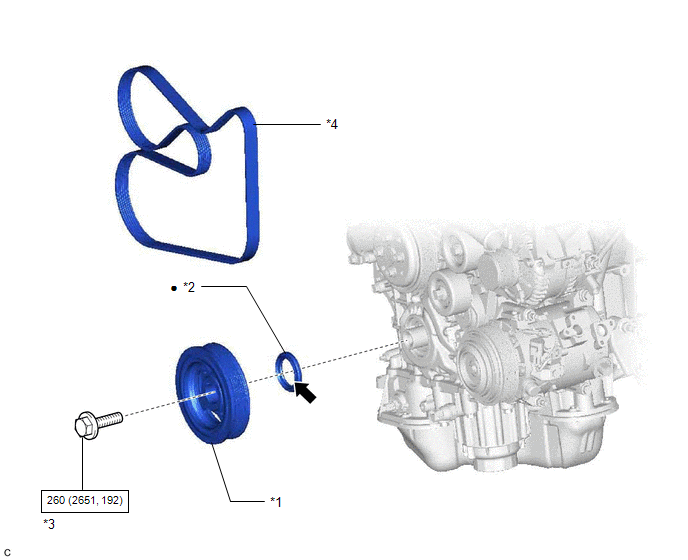

ILLUSTRATION

*1	CRANKSHAFT PULLEY	*2	TIMING CHAIN CASE OIL SEAL
*3	CRANKSHAFT PULLEY SET BOLT	*4	V-RIBBED BELT
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
	MP grease	-	-
