REPLACEMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during fuel filter removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed
*: When performing learning using the Techstream. Click here
Battery terminal is disconnected/reconnected	Perform steering sensor zero point calibration	Lane Departure Alert System (w/ Steering Control)
		Pre-collision System
		Intelligent Clearance Sonar System*
		Lighting System (for Gasoline Model with Cornering Light)
	Memorize steering angle neutral point	Parking Assist Monitor System
	Memorize steering angle neutral point	Panoramic View Monitor System
Replacement of fuel pump	Inspection after repair	Poor idle, etc. Engine start function, etc.

CAUTION:

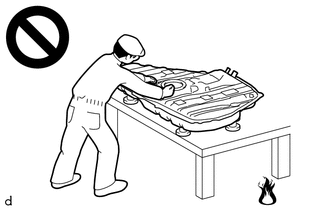

Never perform work on fuel system components near any possible ignition sources.
Vaporized fuel could ignite, resulting in a serious accident.

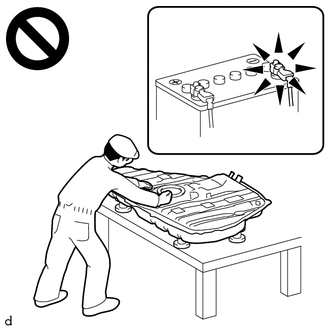

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) battery terminal.
Sparks could cause vaporized fuel to ignite, resulting in a serious accident.

PROCEDURE

1. REMOVE FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here

2. REMOVE FUEL SENDER GAUGE ASSEMBLY

Click here

3. REMOVE FUEL PUMP

Click here

4. REMOVE FUEL MAIN VALVE ASSEMBLY

Click here

5. REMOVE NO. 1 FUEL SUCTION SUPPORT

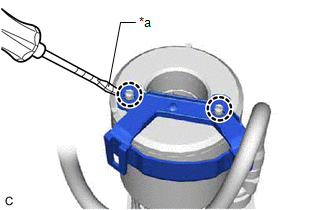

(a) Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the No. 1 fuel suction support from the fuel filter.

*a	Protective Tape

6. INSTALL NO. 1 FUEL SUCTION SUPPORT

(a) Engage the 2 claws to install the No. 1 fuel suction support to the fuel filter.

7. INSTALL FUEL MAIN VALVE ASSEMBLY

Click here

8. INSTALL FUEL PUMP

Click here

9. INSTALL FUEL SENDER GAUGE ASSEMBLY

Click here

10. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

Click here

Components

Fuel Injector(for Direct Injection)

See More:
