COMPONENTS

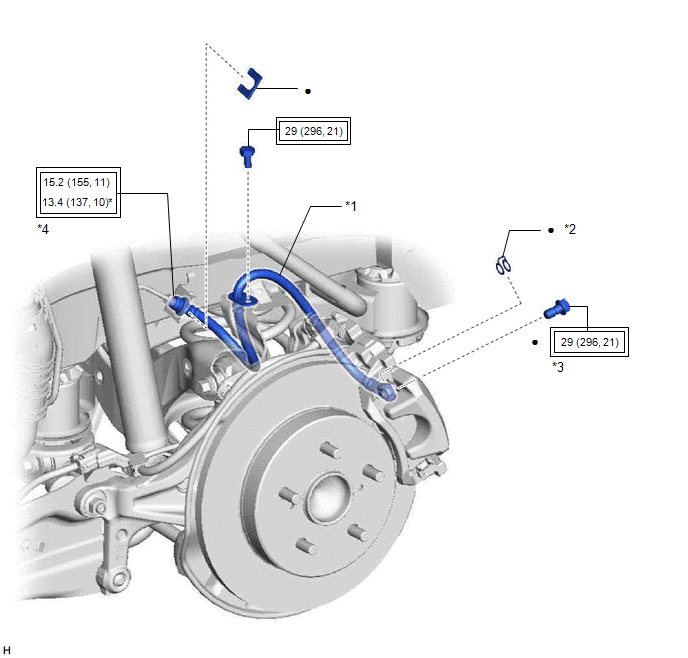

ILLUSTRATION

*1

REAR FLEXIBLE HOSE

*2

GASKET

*3

UNION BOLT

*4

BRAKE LINE

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

*

For use with a union nut wrench

●

Non-reusable part

-

-
    Rear Brake Flexible Hose

    Installation
