COMPONENTS

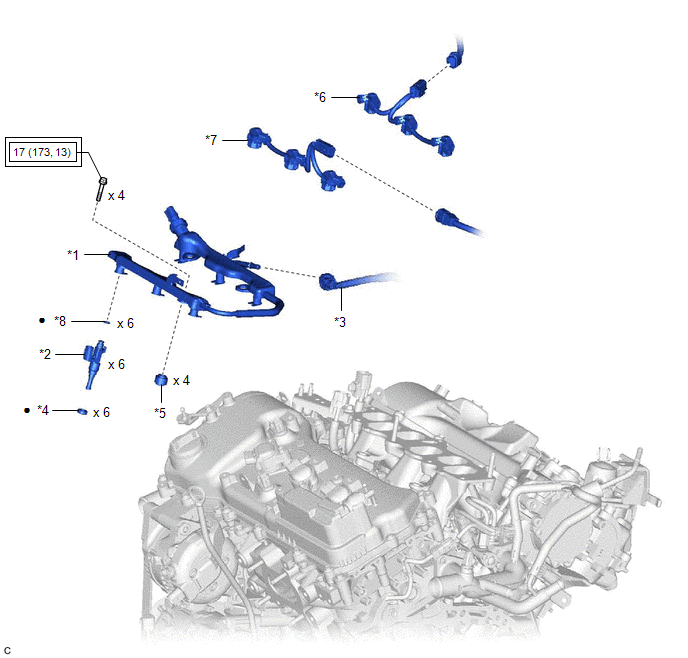

ILLUSTRATION

*1

FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY

*2

FUEL INJECTOR ASSEMBLY

*3

FUEL TUBE SUB-ASSEMBLY

*4

INJECTOR VIBRATION INSULATOR

*5

NO. 1 DELIVERY PIPE SPACER

*6

NO. 5 ENGINE WIRE (for Bank 1)

*7

NO. 5 ENGINE WIRE (for Bank 2)

*8

O-RING

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
    Fuel Injector(for Port Injection)

    Inspection
