INSPECTION

PROCEDURE

1. INSPECT FUEL PRESSURE SENSOR (FUEL DELIVERY PIPE WITH SENSOR ASSEMBLY)

NOTICE:

  • Do not remove the fuel pressure sensor from the fuel delivery pipe with sensor assembly.
  • If the fuel pressure sensor is removed, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly) with a new one.

(a) Check the fuel pressure sensor output voltage.

(1) Apply 5 V between terminals 1 (VC) and 3 (E2).

NOTICE:

  • Be careful when connecting the leads, as the fuel pressure sensor may be damaged if the leads are connected to the wrong terminals.
  • Do not apply more than 6 V to terminals 1 (VC) or 3 (E2).

HINT:

If a stable power supply is not available, connect 4 nickel-metal hydride batteries (1.2 V each) or equivalent in series.

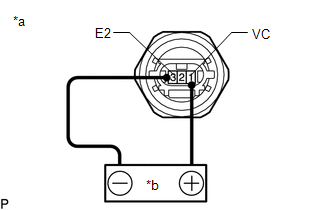

*a

Component without harness connected

(Fuel Pressure Sensor)

*b

Voltage Applied between Terminals

(2) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

2 (PFL) - 3 (E2)

Pressure not applied to fuel pressure sensor

Approximately 0.57 to 0.95 V*

*: The output voltage changes depending on the voltage applied to the terminals.

If the result is not as specified, replace the fuel pressure sensor (fuel delivery pipe with sensor assembly).

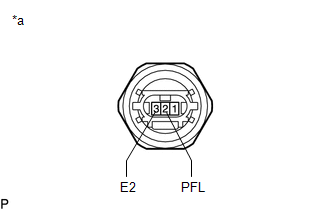

*a

Component without harness connected

(Fuel Pressure Sensor)
    Components

    Installation
