REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during exhaust manifold assembly RH (TWC: Front Catalyst) and exhaust manifold assembly LH (TWC: Front Catalyst) removal/installation are shown below. Necessary Procedures After Parts Removed/Installed/Replaced

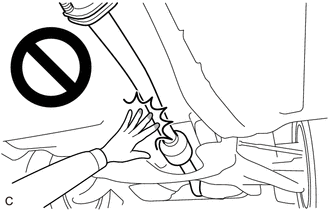

CAUTION:

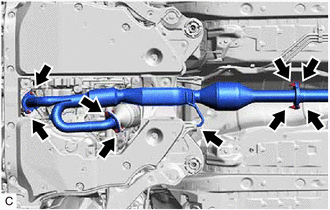

PROCEDURE 1. REMOVE FRONT FLOOR COVER LH Click here 2. REMOVE FRONT FLOOR COVER RH Click here 3. REMOVE BODY MOUNTING PLATE Click here 4. REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) Click here 5. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)

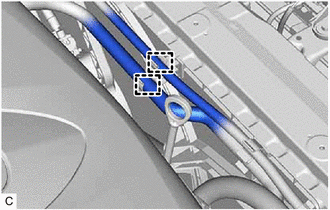

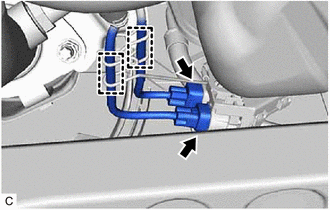

(b) Disengage the 2 wire harness clamps.

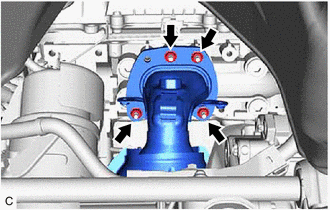

(d) Remove the front exhaust pipe assembly (TWC: Rear Catalyst) from the exhaust pipe support. (e) Remove the 3 gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst). 6. REMOVE AIR FUEL RATIO SENSOR (for Bank 1) Click here 7. REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR

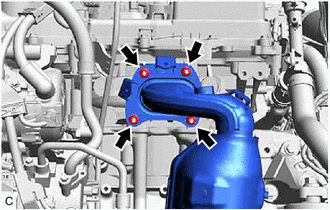

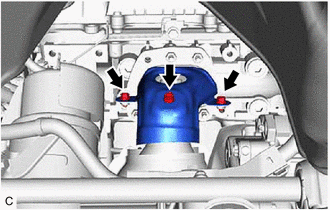

8. REMOVE EXHAUST MANIFOLD ASSEMBLY RH (TWC: Front Catalyst)

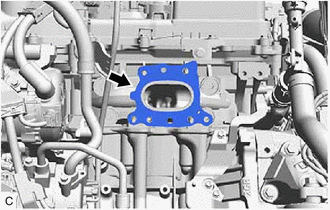

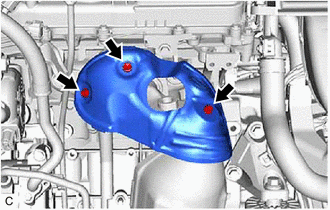

9. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 1)

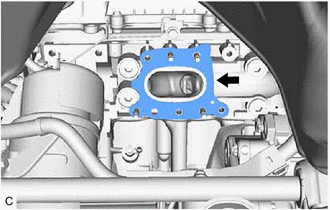

10. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH Click here 11. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH Click here 12. REMOVE NO. 1 ENGINE UNDER COVER Click here 13. REMOVE REAR ENGINE UNDER COVER RH Click here 14. REMOVE V-BANK COVER SUB-ASSEMBLY Click here 15. REMOVE COOL AIR INTAKE DUCT SEAL Click here 16. REMOVE AIR FUEL RATIO SENSOR (for Bank 2) Click here 17. REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE Click here 18. REMOVE NO. 2 EXHAUST MANIFOLD HEAT INSULATOR

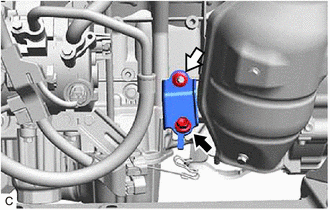

19. REMOVE NO. 2 MANIFOLD STAY (a) Remove the bolt, nut and No. 2 manifold stay from the exhaust manifold assembly LH (TWC: Front Catalyst) and cylinder block sub-assembly.
20. DISCONNECT NO. 5 WATER BY-PASS HOSE
21. REMOVE EXHAUST MANIFOLD ASSEMBLY LH (TWC: Front Catalyst)
22. REMOVE EXHAUST MANIFOLD TO HEAD GASKET (for Bank 2)

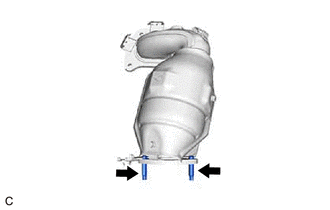

23. REMOVE STUD BOLT HINT: If a stud bolt is deformed or its threads are damaged, replace it.
|
