PARTS LOCATION

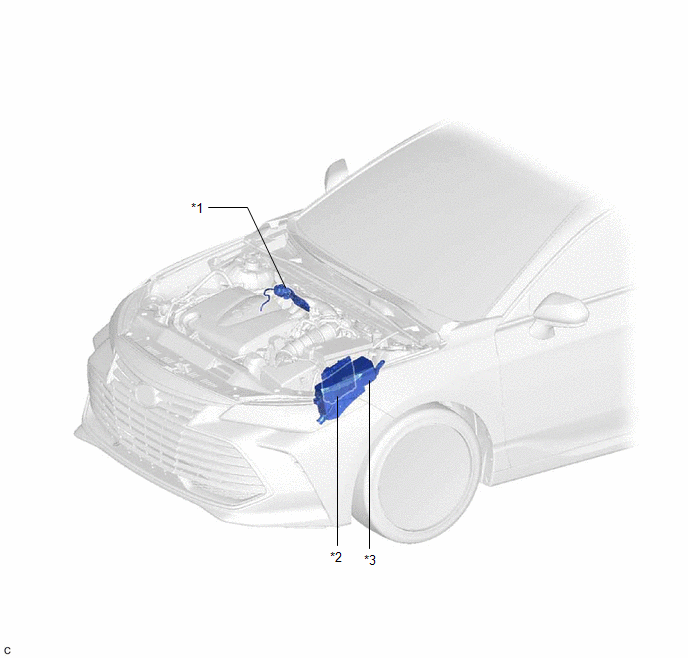

ILLUSTRATION

*1

INTAKE AIR CONTROL VALVE (for ACIS)

*2

ECM

*3

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

- EFI NO. 1 FUSE

-

-
