Components

COMPONENTS

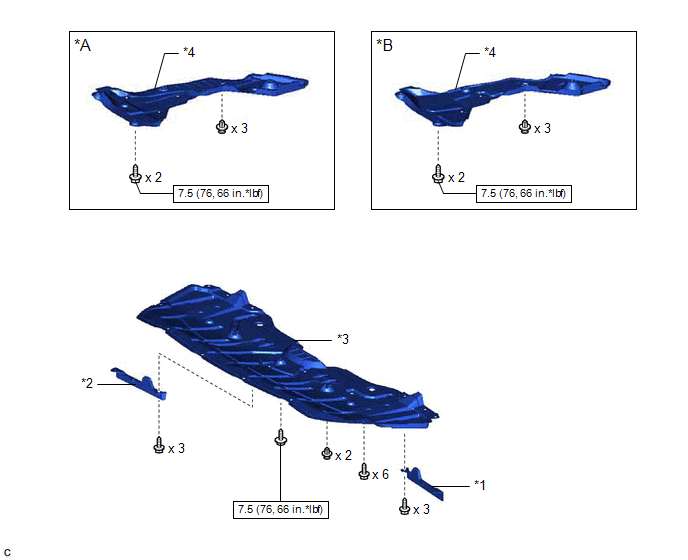

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT WHEEL OPENING EXTENSION PAD LH

*2

FRONT WHEEL OPENING EXTENSION PAD RH

*3

NO. 1 ENGINE UNDER COVER

*4

REAR ENGINE UNDER COVER RH

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

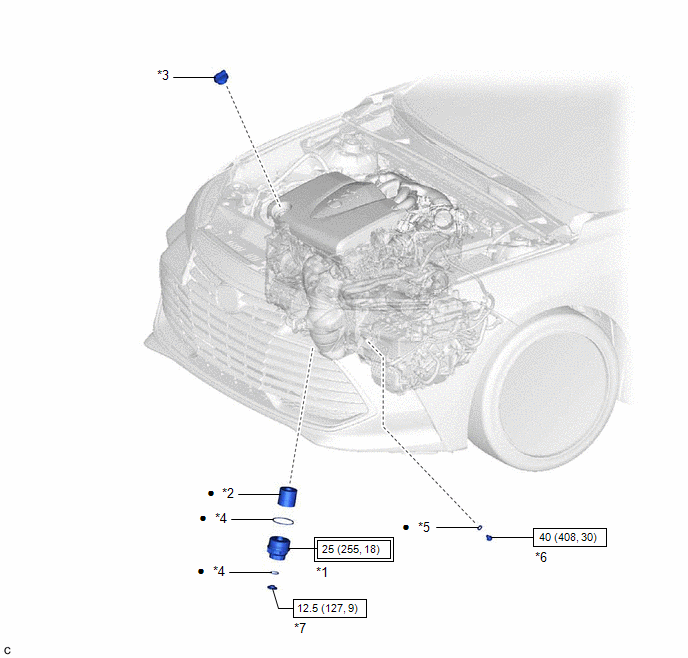

ILLUSTRATION

*1

OIL FILTER CAP ASSEMBLY

*2

OIL FILTER ELEMENT

*3

OIL FILLER CAP SUB-ASSEMBLY

*4

O-RING

*5

GASKET

*6

OIL PAN DRAIN PLUG

*7

OIL FILTER DRAIN PLUG

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

-

-
