COMPONENTS

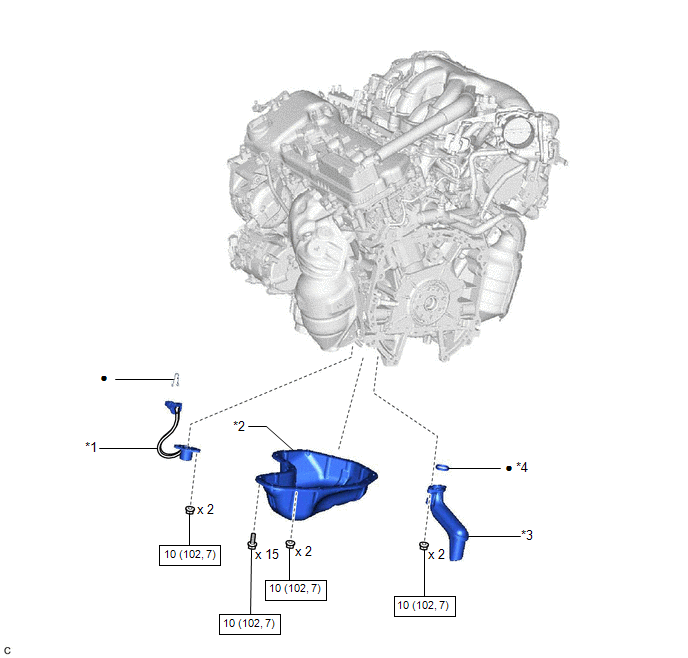

ILLUSTRATION

*1	ENGINE OIL LEVEL SENSOR	*2	NO. 2 OIL PAN SUB-ASSEMBLY
*3	OIL STRAINER SUB-ASSEMBLY	*4	OIL STRAINER GASKET
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
