INSPECTION PROCEDURE 1. INSPECT OIL PUMP RELIEF VALVE

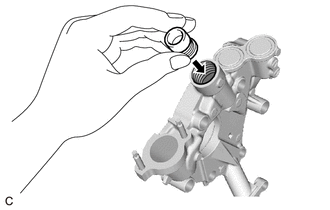

| (a) Coat the oil pump relief valve with engine oil and check that it falls smoothly into the valve hole by its own weight.
HINT: If the oil pump relief valve does not fall smoothly, replace the timing chain cover assembly. |
|

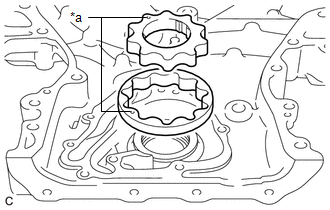

2. INSPECT OIL PUMP ROTOR SET (a) Apply engine oil to the drive rotor and driven rotor.
| (b)
Install the drive rotor and driven rotor to the timing chain cover
assembly with the rotor marks facing up. Check that the rotors rotate
smoothly. HINT: If the rotors do not rotate smoothly, replace the timing chain cover assembly. |
|

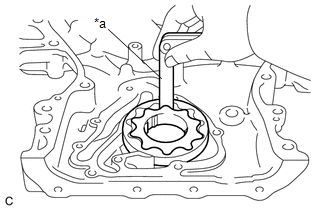

| (c) Check the tip clearance. (1) Using a feeler gauge, measure the clearance between the drive rotor and driven rotor tips as shown in the illustration.
Standard Tip Clearance: 0.040 to 0.150 mm (0.00157 to 0.00591 in.)
Maximum Tip Clearance: 0.150 mm (0.00591 in.) HINT:
If the tip clearance is more than the maximum, replace the timing chain cover assembly. |
|

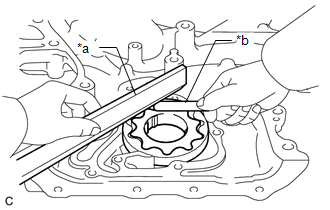

| (d) Check the side clearance. (1)
Using a feeler gauge and precision straightedge, measure the clearance
between the drive rotor and driven rotor and precision straightedge as
shown in the illustration. Standard Side Clearance: 0.030 to 0.070 mm (0.00118 to 0.00276 in.)
Maximum Side Clearance: 0.070 mm (0.00276 in.) HINT:
If the side clearance is more than the maximum, replace the timing chain cover assembly. |
 |
|
*a | Precision Straightedge | |
*b | Feeler Gauge | | |

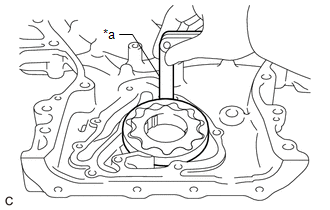

| (e) Check the body clearance. (1)
Using a feeler gauge, measure the clearance between the timing chain
cover assembly and driven rotor as shown in the illustration. Standard Body Clearance:
0.250 to 0.325 mm (0.00984 to 0.0128 in.) Maximum Body Clearance:
0.325 mm (0.0128 in.) HINT: If the body clearance is more than the maximum, replace the timing chain cover assembly. |
| |
