REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced engine switch removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed
*: When performing learning using the Techstream. Click here
Battery terminal is disconnected/reconnected	Perform steering sensor zero point calibration	Lane departure alert system (w/ Steering Control)
		Pre-collision system
		Intelligent clearance sonar system*
		Lighting System (for Gasoline Model with Cornering Light)
	Memorize steering angle neutral point	Parking assist monitor system
	Memorize steering angle neutral point	Panoramic view monitor system

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click here

2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS (for Power Tilt and Power Telescopic Steering Column)

Click here

3. REMOVE LOWER NO. 2 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click here

4. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL LH

Click here

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL RH

Click here

6. REMOVE FRONT CONSOLE UPPER PANEL GARNISH

Click here

7. REMOVE CONSOLE BOX POCKET SUB-ASSEMBLY

Click here

8. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click here

9. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Click here

10. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY

Click here

11. REMOVE CONSOLE BOX BEZEL

Click here

12. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

Click here

13. REMOVE CENTER NO. 2 INSTRUMENT CLUSTER FINISH PANEL

Click here

14. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

Click here

15. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

Click here

16. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

Click here

17. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

Click here

18. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH ASSEMBLY

Click here

19. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

Click here

20. REMOVE ENGINE SWITCH

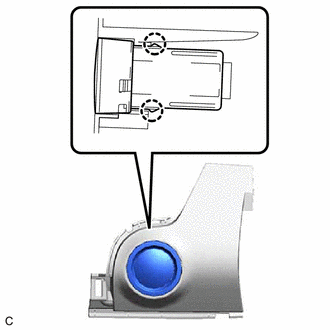

(a) Disengage the 2 claws and remove the engine switch from lower instrument panel finish panel assembly.
