COMPONENTS ILLUSTRATION
|

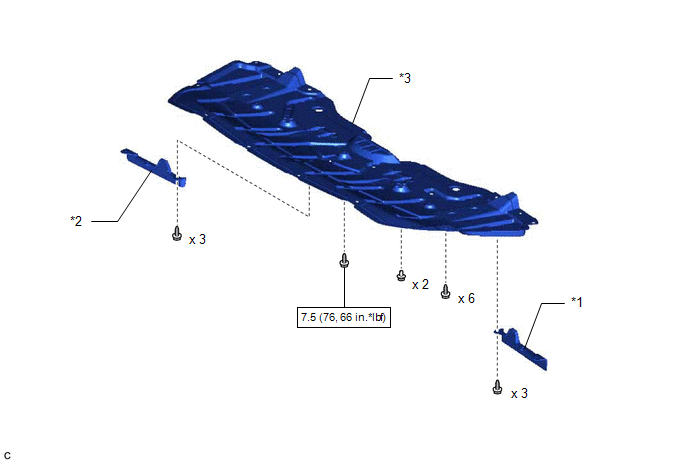

*1 | FRONT WHEEL OPENING EXTENSION PAD LH |
*2 | FRONT WHEEL OPENING EXTENSION PAD RH | |
*3 | NO. 1 ENGINE UNDER COVER |
- | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - | ILLUSTRATION
|
*A | Type A |
*B | Type B | |

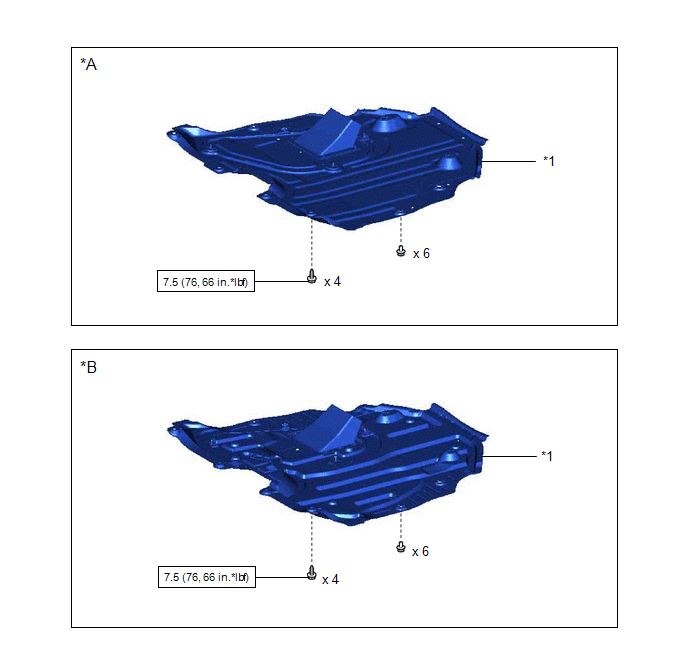

*1 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
- | - | |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - | ILLUSTRATION
|

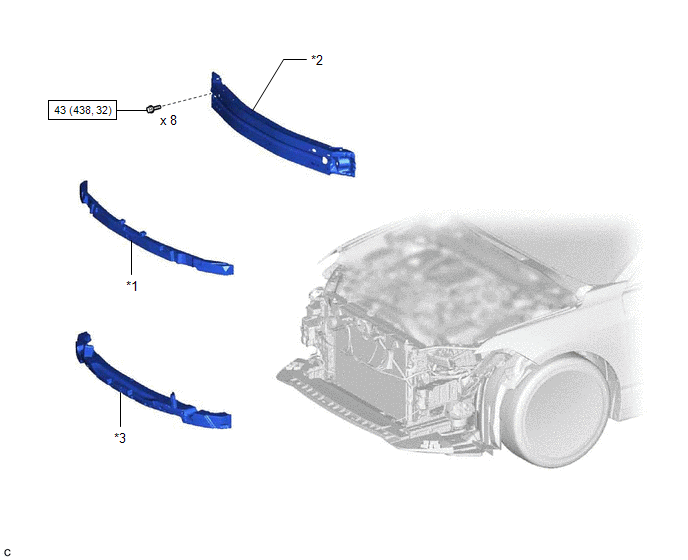

*1 | FRONT BUMPER ENERGY ABSORBER |
*2 | FRONT BUMPER REINFORCEMENT | |
*3 | NO. 2 FRONT BUMPER ENERGY ABSORBER |
- | - | |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
- | - | ILLUSTRATION
|

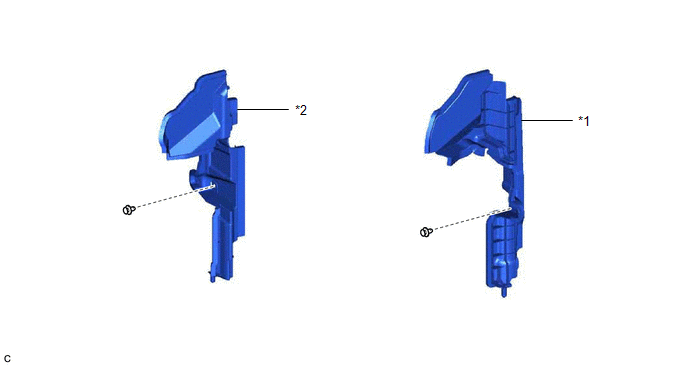

*1 | NO. 1 RADIATOR AIR GUIDE LH |
*2 | NO. 1 RADIATOR AIR GUIDE RH | ILLUSTRATION
|

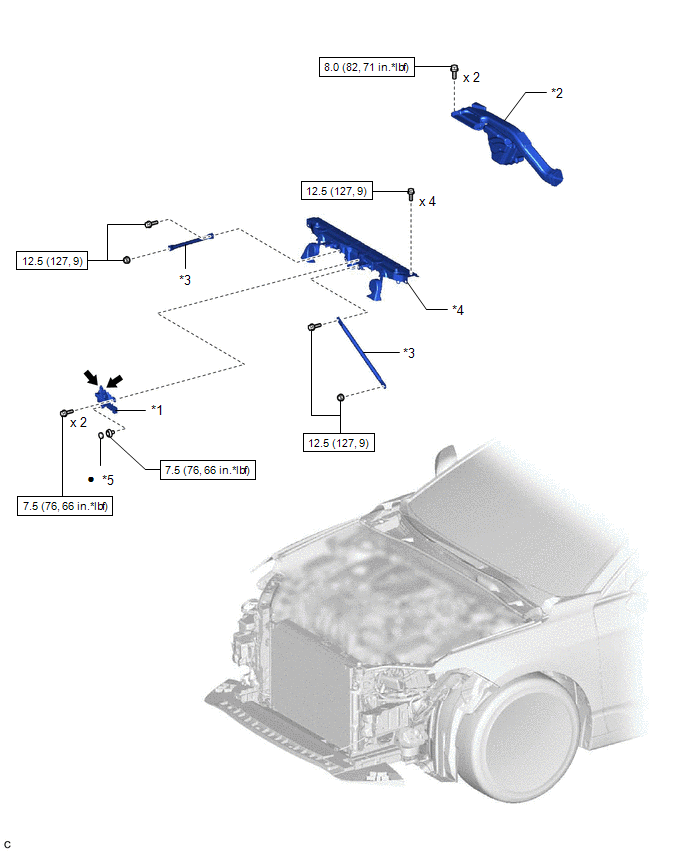

*1 | HOOD LOCK ASSEMBLY |
*2 | INLET AIR CLEANER ASSEMBLY | |
*3 | UPPER RADIATOR MOUNTING BRACKET |
*4 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | |
*5 | HOOD LOCK NUT CAP |
- | - | |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● | Non-reusable part |
 |
MP grease | - |
- | ILLUSTRATION
|

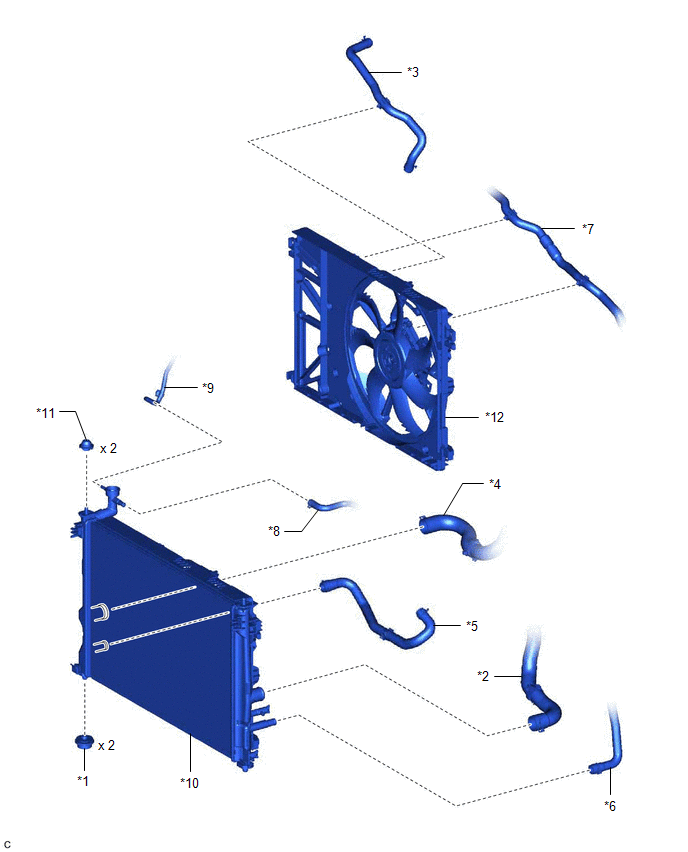

*1 | LOWER RADIATOR SUPPORT |
*2 | NO. 1 RADIATOR HOSE | |
*3 | NO. 2 INVERTER COOLING HOSE |
*4 | NO. 2 RADIATOR HOSE | |
*5 | NO. 3 INVERTER COOLING HOSE |
*6 | NO. 4 INVERTER COOLING HOSE | |
*7 | NO. 5 INVERTER COOLING HOSE |
*8 | NO. 5 WATER BY-PASS HOSE | |
*9 | NO. 6 WATER BY-PASS HOSE |
*10 | RADIATOR ASSEMBLY | |
*11 | RADIATOR SUPPORT CUSHION |
*12 | FAN WITH MOTOR ASSEMBLY | |
