REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during radiator assembly removal/installation are shown below. Necessary Procedure After Parts Removed/Installed/Replaced
PROCEDURE 1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH Click here 2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH Click here 3. REMOVE NO. 1 ENGINE UNDER COVER Click here 4. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY Click here 5. DRAIN ENGINE COOLANT (for Engine) Click here 6. REMOVE INVERTER WATER PUMP ASSEMBLY Click here 7. REMOVE HEADLIGHT ASSEMBLY Click here 8. REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER Click here 9. REMOVE FRONT BUMPER ENERGY ABSORBER Click here 10. REMOVE FRONT BUMPER REINFORCEMENT Click here 11. REMOVE RADIATOR SHUTTER SUB-ASSEMBLY Click here 12. REMOVE HOOD LOCK ASSEMBLY Click here 13. REMOVE INLET AIR CLEANER ASSEMBLY Click here 14. REMOVE UPPER RADIATOR MOUNTING BRACKET

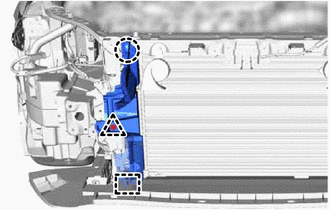

15. REMOVE NO. 1 RADIATOR AIR GUIDE LH

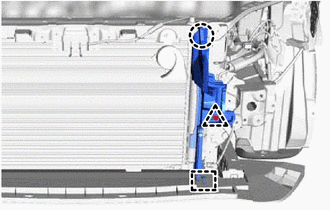

(b) Disengage the guide to remove the No. 1 radiator air guide LH. 16. REMOVE NO. 1 RADIATOR AIR GUIDE RH

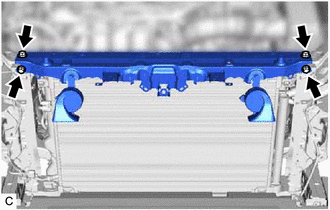

(b) Disengage the guide to remove the No. 1 radiator air guide RH. 17. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

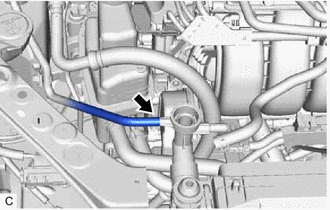

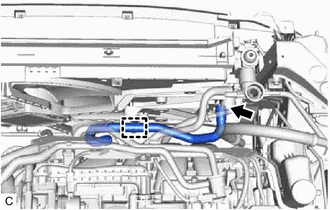

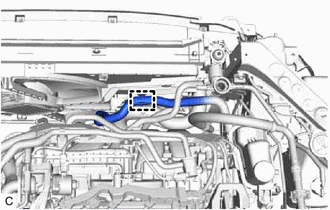

18. DISCONNECT NO. 5 WATER BY-PASS HOSE

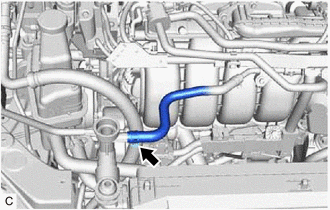

19. DISCONNECT NO. 6 WATER BY-PASS HOSE

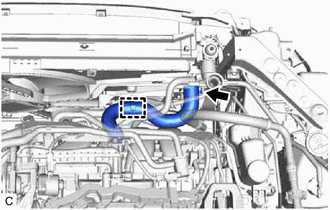

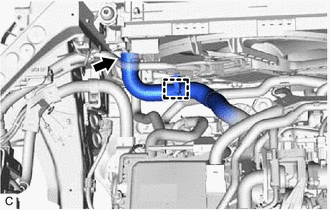

20. DISCONNECT NO. 1 RADIATOR HOSE
(b) Slide the clip and disconnect the No. 1 radiator hose from the radiator assembly. 21. DISCONNECT NO. 4 INVERTER COOLING HOSE

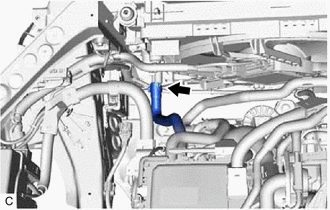

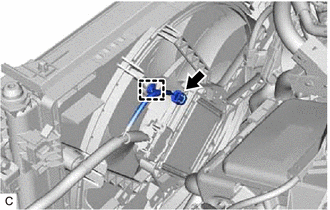

22. DISCONNECT NO. 5 INVERTER COOLING HOSE
23. DISCONNECT NO. 2 INVERTER COOLING HOSE

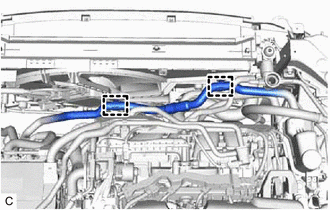

24. DISCONNECT NO. 2 RADIATOR HOSE

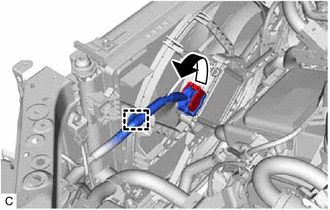

(b) Slide the clip and disconnect the No. 2 radiator hose from the radiator assembly. 25. REMOVE NO. 3 INVERTER COOLING HOSE
(b) Slide the clip and remove the No. 3 inverter cooling hose from the radiator assembly. 26. REMOVE RADIATOR ASSEMBLY

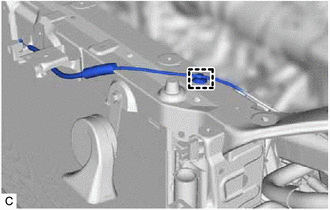

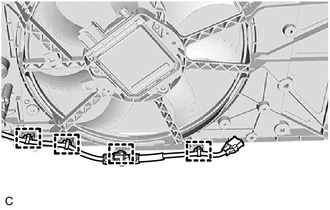

(c) Disengage the wire harness clamp.

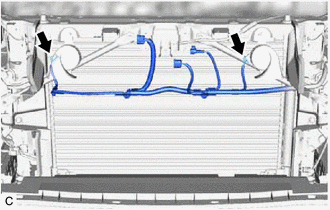

(e) Disengage the wire harness clamp.

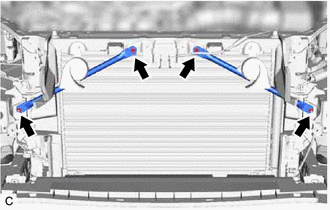

(g) Disengage the 2 guides to separate the cooler condenser assembly from the radiator assembly. NOTICE: Make sure not to damage the cooler condenser assembly when separating the cooler condenser assembly. (h) Remove the radiator assembly with the fan with motor assembly from the vehicle body. NOTICE: Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly with the fan with motor assembly.

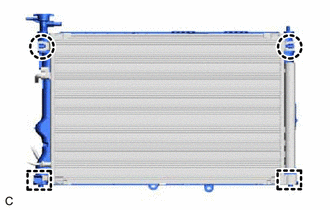

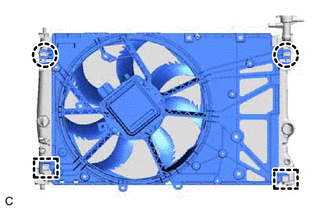

(j) Disengage the 2 guides to remove the fan with motor assembly from the radiator assembly. NOTICE: Do not damage the radiator assembly when removing the fan with motor assembly. 27. REMOVE RADIATOR SUPPORT CUSHION (a) Remove the 2 radiator support cushions from the radiator assembly. 28. REMOVE LOWER RADIATOR SUPPORT (a) Remove the 2 lower radiator supports from the radiator assembly. |
