COMPONENTS

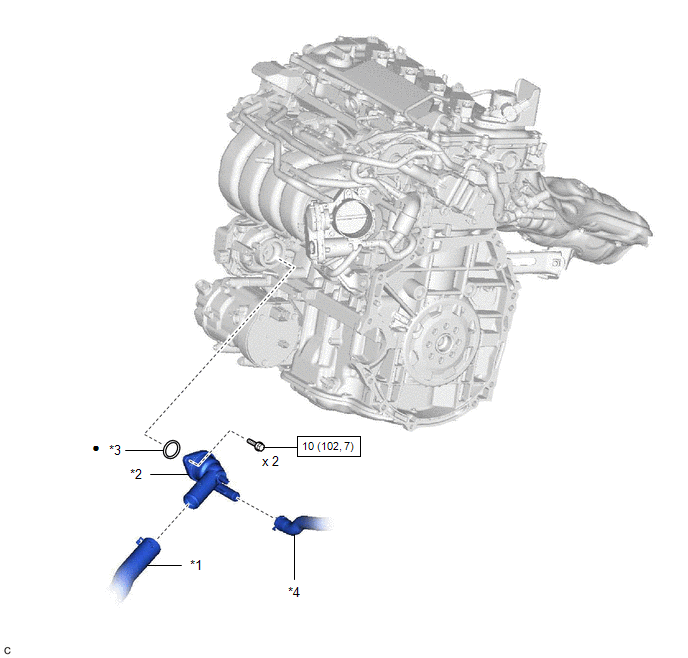

ILLUSTRATION

*1

NO. 2 RADIATOR HOSE

*2

WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

*3

GASKET

*4

NO. 7 WATER BY-PASS HOSE

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
    Thermostat

    Inspection
