REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during engine water pump assembly (water inlet housing) removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link
  • Replacement of throttle body assembly
  • Cleaning the deposits from the throttle body assembly
  • Replacement of EGR valve assembly
  • Gas leak from exhaust system is repaired

Inspection After Repair
  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click here

PROCEDURE

1. REMOVE INTAKE MANIFOLD

Click here

2. REMOVE WATER INLET WITH THERMOSTAT SUB-ASSEMBLY

Click here

3. REMOVE ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING)

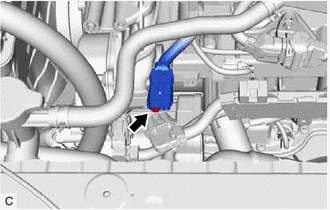

(a) Disconnect the sensor wire connector.

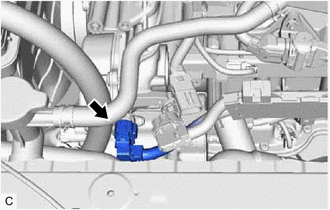

(b) Using an 8 mm socket wrench, remove the bolt and disconnect the sensor wire from the engine water pump assembly (water inlet housing).

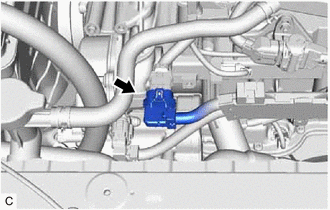

(c) Disconnect the engine water pump assembly (water inlet housing) connector.

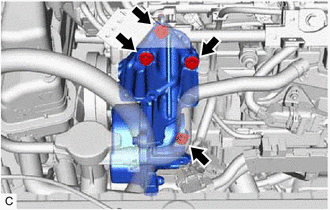

(d) Remove the 4 bolts and engine water pump assembly (water inlet housing) from the cylinder block assembly.

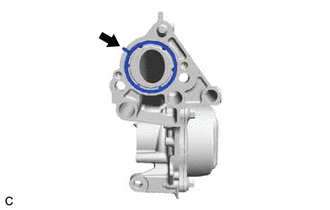

(e) Remove the gasket from the engine water pump assembly (water inlet housing).
