COMPONENTS

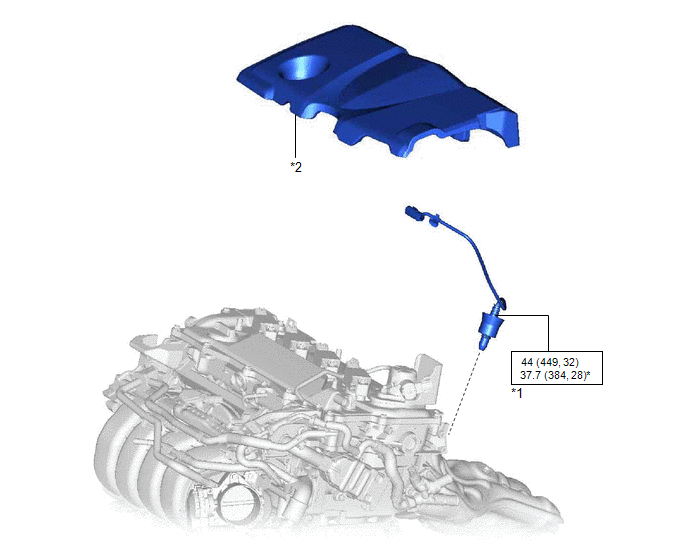

ILLUSTRATION

*1

AIR FUEL RATIO SENSOR

*2

NO. 1 ENGINE COVER SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with SST
    Air Fuel Ratio Sensor(for Sensor 1)

    Inspection
