COMPONENTS

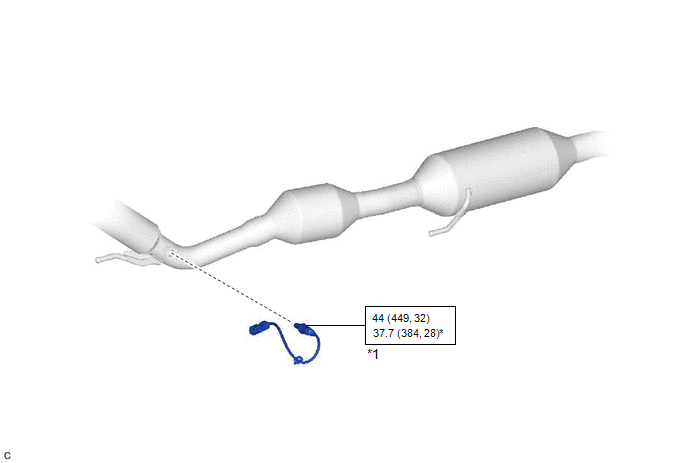

ILLUSTRATION

*1	AIR FUEL RATIO SENSOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with SST

Air Fuel Ratio Sensor(for Sensor 2)

Inspection
