COMPONENTS

ILLUSTRATION

*1

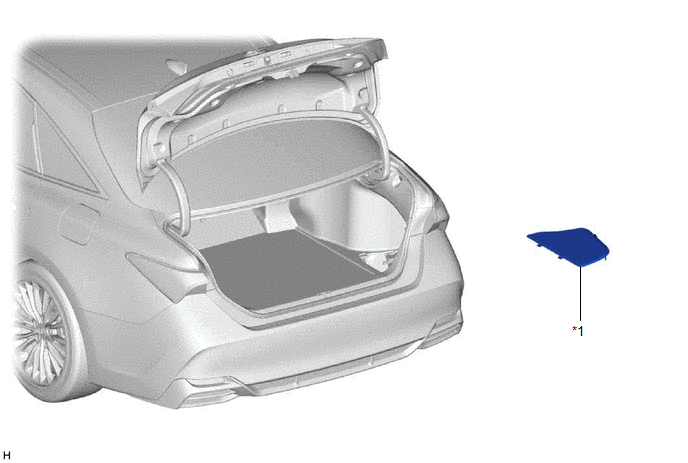

LUGGAGE TRIM SERVICE HOLE COVER

-

-

ILLUSTRATION

*1

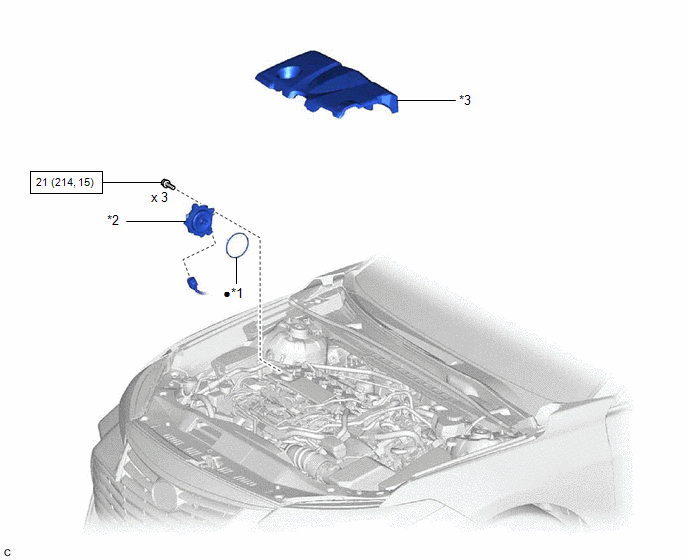

CAM TIMING CONTROL MOTOR O-RING

*2

CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

*3

NO. 1 ENGINE COVER SUB-ASSEMBLY

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
