COMPONENTS

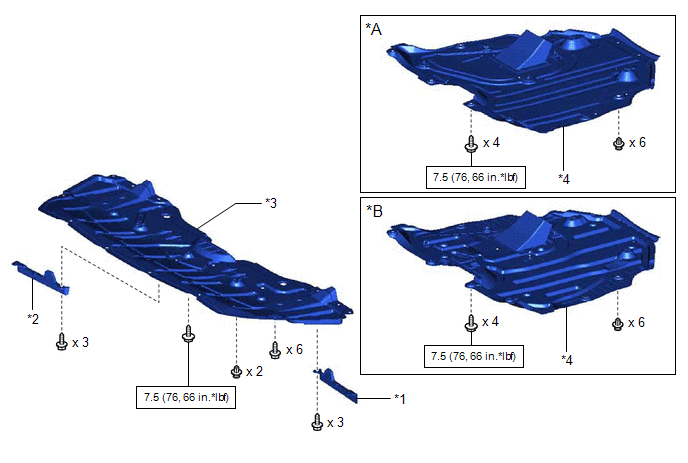

ILLUSTRATION

*A

Type A

*B

Type B

*1

FRONT WHEEL OPENING EXTENSION PAD LH

*2

FRONT WHEEL OPENING EXTENSION PAD RH

*3

NO. 1 ENGINE UNDER COVER

*4

NO. 2 ENGINE UNDER COVER ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

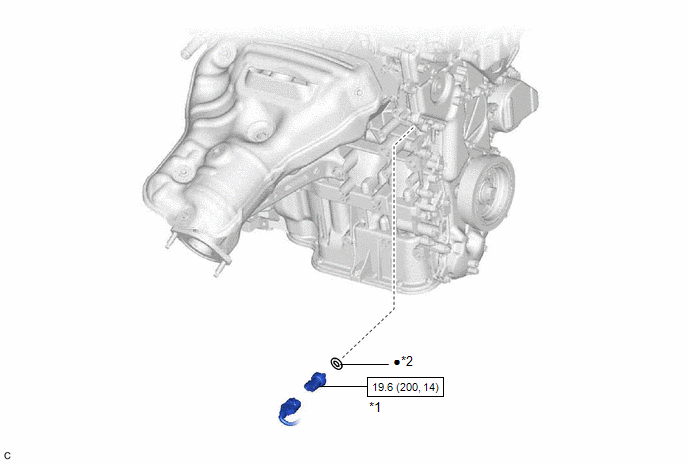

ILLUSTRATION

*1

ENGINE OIL TEMPERATURE SENSOR

*2

GASKET

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
    Engine Oil Temperature Sensor

    Inspection
