FREEZE FRAME DATA

DESCRIPTION

The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

HINT:

  • If it is impossible to replicate the problem even though a DTC is detected, confirm the Freeze Frame Data.
  • Freeze Frame Data is available in long and short forms.

PENDING FREEZE FRAME DATA

HINT:

Pending Freeze Frame Data is stored when a 2 trip detection logic DTC is first detected during the first trip.

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Select a DTC in order to display its pending Freeze Frame Data.

Powertrain > Engine > Trouble Codes

HINT:

  • Pending Freeze Frame Data is cleared when any of the following occurs.
    • Using the Techstream, the DTCs cleared.
    • The cable is disconnected from the negative (-) auxiliary battery terminal.

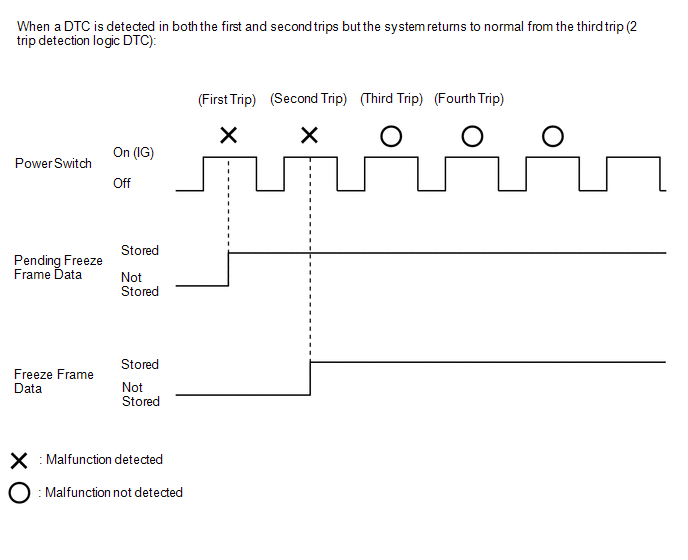

    • 40 trips with the engine fully warmed up have been performed after returning to normal. (Pending Freeze Frame Data will not be cleared by only returning the system to normal.)

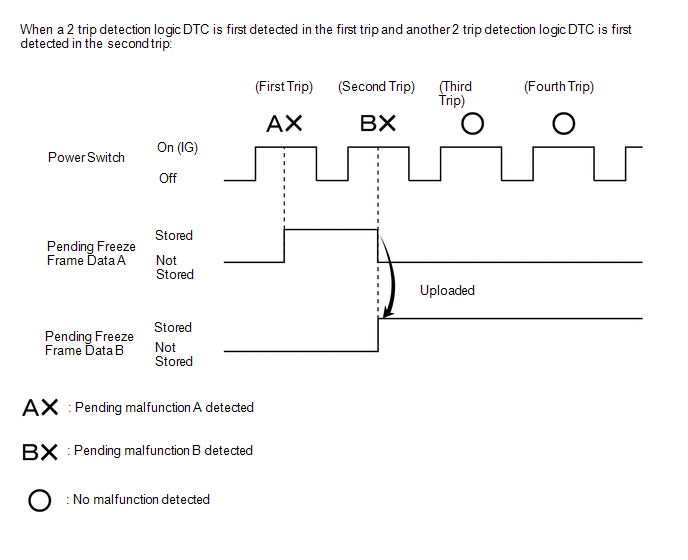

  • With previous pending Freeze Frame Data stored, if pending Freeze Frame Data is newly stored when a 2 trip detection logic DTC is detected in the first trip, the old Freeze Frame Data will be replaced with the new data of the newly detected DTC in the next trip.

LIST OF FREEZE FRAME DATA

Powertrain > Engine

Tester Display

Total Distance Traveled

Total Distance Traveled - Unit

Vehicle Speed

Engine Speed

Calculate Load

Vehicle Load

Mass Air Flow Sensor

Atmospheric Pressure

Intake Manifold Absolute Pressure

Intake Manifold Absolute Pressure Supported

Engine Oil Temperature Sensor

Coolant Temperature

Intake Air Temperature

Ambient Temperature

Engine Run Time

Radiator Coolant Temperature

IG-ON Coolant Temperature

Initial Engine Coolant Temperature

IG-ON Intake Air Temperature

Initial Engine Intake Air Temperature

Battery Voltage

BATT Voltage

Engine Oil Pressure

Target Engine Oil Pressure

Engine Oil Pressure Control Valve

Throttle Position Sensor No.1 Voltage %

Throttle Position Sensor No.2 Voltage %

System Guard

Open Side Malfunction

Throttle Request Position

Throttle Sensor Position

Throttle Position Sensor No.1 Voltage

Throttle Position Sensor No.2 Voltage

Throttle Position Command

Throttle Position Sensor Open Position No.1

Throttle Position Sensor Open Position No.2

Throttle Motor Current

Throttle Motor Duty Ratio

Throttle Motor Duty Ratio (Open)

Throttle Motor Duty Ratio (Close)

Throttle Position Sensor Fully Closed Learn Value

+BM Voltage

Actuator Power Supply

Throttle Air Flow Learn Value (Area 1)

Throttle Air Flow Learn Value (Area 2)

Throttle Air Flow Learn Value (Area 3)

Throttle Air Flow Learn Value (Calculated Value)

Throttle Air Flow Learn Value (Atmosphere Pressure Offset Value)

Low Revolution Control

Engine Stall Control F/B Flow

Target Fuel Pressure (High)

Target Fuel Pressure (High) Supported

Target Fuel Pressure (Low)

Target Fuel Pressure (Low) Supported

Fuel Pressure (High)

Fuel Pressure (High) Supported

Fuel Pressure (Low)

Fuel Pressure (Low) Supported

VSV for Vent Valve

Vacuum Pump

Fuel Pump Control Duty Ratio

Injector Cylinder #1 (Port)

Injection Volume Cylinder #1

Target Fuel Pressure Offset

Injection Volume

Low Fuel Pressure Sensor

High Fuel Pressure Sensor

High Pressure Fuel Pump Duty Ratio (D4)

High Pressure Fuel Pump Discharge Rate

Injection Mode

Injection Switching Status

Injection Timing Cylinder #1 (D4)

Injection Time Cylinder #1 (D4)

Current Fuel Type

EVAP (Purge) VSV

Vapor Pressure Fuel Tank Sensor

EVAP Vapor Pressure (Wide)

Fuel Filler Opener

Fuel Vapor-Containment Valve

Fuel Lid SW

Fuel Lid Sensor SW

Target Air-Fuel Ratio

A/F (O2) Lambda Sensor B1S1

A/F (O2) Lambda Sensor B1S2

A/F (O2) Sensor Current B1S1

A/F (O2) Sensor Current B1S2

A/F (O2) Sensor Heater Duty Ratio B1S1

A/F Sensor Heater Current Value B1S2

A/F Sensor Heater Duty B1S2

A/F Sensor Impedance B1S1

A/F Sensor Impedance B1S2

Short FT B1S1

Short FT B1S2

Long FT B1S1

Long FT B1S2

Total FT Bank 1

Fuel System Status Bank 1

Fuel System Status Bank 2

Ignition Timing Cylinder #1

Knock F/B Value

Knock Correct Learn Value

Idle Spark Advance Control Cylinder #1

Idle Spark Advance Control Cylinder #2

Idle Spark Advance Control Cylinder #3

Idle Spark Advance Control Cylinder #4

Mass Air Flow Circuit

Target EGR Valve Position No.1

Target EGR Valve Position No.1 Supported

Actual EGR Valve Position No.1 Supported

Target EGR Valve Position No.2 Supported

Actual EGR Valve Position No.2 Supported

EGR Step Position

VVT Advance Fail

Intake VVT Change Angle Bank 1

Exhaust VVT Hold Learn Value Bank 1

Exhaust VVT Change Angle Bank 1

Exhaust VVT OCV Control Duty Ratio Bank 1

Intake VVT Target Angle Bank 1

Exhaust VVT Target Angle Bank 1

Intake VVT Timing Most Over-Retarded Learn Value Bank 1

Exhaust VVT Timing Most Over-Advanced Learn Value Bank 1

VVT-iE Duty Ratio Bank 1

VVT-iE Motor Direction Bank 1

Catalyst Temperature B1S1

Catalyst Temperature B1S2

TC Terminal

MIL ON Run Distance

Running Time from MIL ON

Time after DTC Cleared

Distance from DTC Cleared

Warmup Cycle Cleared DTC

Distance Traveled from Last Battery Cable Disconnect

IG OFF Elapsed Time

Ignition Trigger Count

Misfire Count Cylinder #1

Misfire Count Cylinder #2

Misfire Count Cylinder #3

Misfire Count Cylinder #4

All Cylinders Misfire Count

Misfire RPM

Misfire Load

Misfire Margin

Catalyst OT Misfire Fuel Cut

Catalyst OT Misfire Fuel Cut History

Catalyst OT Misfire Fuel Cut Cylinder #1

Catalyst OT Misfire Fuel Cut Cylinder #2

Catalyst OT Misfire Fuel Cut Cylinder #3

Catalyst OT Misfire Fuel Cut Cylinder #4

A/F Learn Value Idle (Port) Bank 1

A/F Learn Value Low (Port) Bank 1

A/F Learn Value Mid No.1 (Port) Bank 1

A/F Learn Value Mid No.2 (Port) Bank 1

A/F Learn Value High (Port) Bank 1

Engine Start Hesitation

Low Revolution for Engine Start

A/F Learn Value Idle Bank 1

A/F Learn Value Low Bank 1

A/F Learn Value Mid No.1 Bank 1

A/F Learn Value Mid No.2 Bank 1

A/F Learn Value High Bank 1

A/F Learn Value Low (Dual) Bank 1

A/F Learn Value Mid (Dual) No.1 Bank 1

A/F Learn Value Mid (Dual) No.2 Bank 1

A/F Learn Value High (Dual) Bank 1

Engine ECU Internal Temperature

Cooling Fan Duty Ratio

Coolant Water Route Switching Valve

Electric Thermostat Duty Ratio

Engine Speed Cylinder #1

Engine Speed Cylinder #2

Engine Speed Cylinder #3

Engine Speed Cylinder #4

Average Engine Speed of All Cylinder

A/F Sensor Determination (Worst Value) Bank 1

Engine Speed Fluctuation Average (Worst Value) Cylinder #1

Engine Speed Fluctuation Average (Worst Value) Cylinder #2

Engine Speed Fluctuation Average (Worst Value) Cylinder #3

Engine Speed Fluctuation Average (Worst Value) Cylinder #4

A/F Sensor Determination (Worst Value) (Port) Bank 1

Engine Speed Fluctuation Average (Worst Value) (Port) Cylinder #1

Engine Speed Fluctuation Average (Worst Value) (Port) Cylinder #2

Engine Speed Fluctuation Average (Worst Value) (Port) Cylinder #3

Engine Speed Fluctuation Average (Worst Value) (Port) Cylinder #4

Requested Engine Torque

HV Target Engine Speed

Actual Engine Torque

Engine Driving Time

Request Engine Run Time

Judge Time Engine Ignition

Judge Time Engine Output

Fuel Level

ISC Learning Value

ISC Learning

F/C for Engine Stop Req

Engine Independent

Racing Operation

Request Warm-up

Engine Independent Control

Electric Water Pump Target Speed

Electric Water Pump Speed

Active Grille Air Shutter Position

    Fail-safe Chart
