Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Engine Coolant Temperature/Engine Oil Temperature Signal Compare Failure (P012F62)

DESCRIPTION

The engine is equipped with an engine coolant temperature sensor and an engine oil temperature sensor. The engine coolant temperature sensor and engine oil temperature sensor each have a built-in thermistor. As the temperature decreases, the thermistor resistance increases and as the temperature increases, the thermistor resistance decreases. The voltages at the respective terminals of the ECM change in accordance with the changes in the resistance of the thermistors. The ECM performs control based on these voltages.

MONITOR DESCRIPTION

After the engine has stopped for 5 hours or more, the ECM monitors the voltage of the engine coolant temperature sensor and engine oil temperature sensor. If the difference between the readings of the engine coolant temperature and engine oil temperature is higher than 20°C (36°F), the ECM determines that there is a malfunction in the engine coolant temperature sensor circuit or engine oil temperature sensor circuit, and stores a DTC and illuminates the MIL.

MONITOR STRATEGY

TYPICAL ENABLING CONDITIONS

TYPICAL MALFUNCTION THRESHOLDS

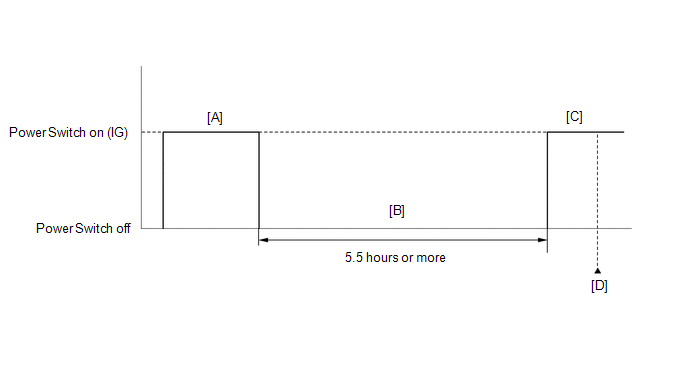

CONFIRMATION DRIVING PATTERN

HINT:

• After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

  Click here

• When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.

  Click here

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) [A].
3. Turn the Techstream on.
4. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
5. Turn the power switch off.
6. With the engine stopped, leave the vehicle as is for 5.5 hours or more [B].
7. Turn the power switch on (IG) [C].
8. Turn the Techstream on.
9. Enter the following menus: Powertrain / Engine / Trouble Codes [D].
10. Read the pending DTCs.

    HINT:

    • If a pending DTC is output, the system is malfunctioning.
    • If a pending DTC is not output, perform the following procedure.
11. Enter the following menus: Powertrain / Engine / Utility / All Readiness.
12. Input the DTC: P012F62.
13. Check the DTC judgment result.

    Techstream Display	Description
    NORMAL	DTC judgment completed System normal
    ABNORMAL	DTC judgment completed System abnormal
    INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

    HINT:

    • If the judgment result is NORMAL, the system is normal.
    • If the judgment result is ABNORMAL, the system is malfunctioning.
    • If the judgment result is INCOMPLETE, perform steps [B] through [D] again.
    • [B] to [D]: Normal judgment procedure.

      The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

    • When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

CAUTION / NOTICE / HINT

NOTICE:

• Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

  Click here

  (Select Powertrain in Health Check and then check the time stamp data.)

  Click here

• If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

  Click here

HINT:

Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.

PROCEDURE

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs and record the Freeze Frame Data.

HINT:

If any DTCs other than P012F62 are output, troubleshoot those DTCs first.

B

GO TO DTC CHART

A

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Using the Techstream, read the values displayed in the Freeze Frame Data recorded in step 1.

(e) Read the value displayed on the Techstream.

Standard:

HINT:

• When the engine is cold, the value of the engine coolant temperature, engine oil temperature and intake air temperature should be approximately the same.
• If the result is not as specified, check that there are no heat sources such as a block heater in the engine compartment.
• Perform "Inspection After Repair" after replacing the engine coolant temperature sensor.

  Click here

NG

REPLACE ENGINE COOLANT TEMPERATURE SENSOR

OK

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Using the Techstream, read the values displayed in the freeze frame data recorded in step 1.

(e) Read the value displayed on the Techstream.

Standard:

HINT:

When the engine is cold, the value of the engine coolant temperature, engine oil temperature and intake air temperature should be approximately the same.

OK

REPLACE ECM

NG

REPLACE ENGINE OIL TEMPERATURE SENSOR
