DESCRIPTION When the brake pedal is depressed, the stop light switch assembly sends a signal to the hybrid vehicle control ECU. When the hybrid vehicle control ECU receives this signal, it cancels the dynamic radar cruise control. The fail-safe function operates to enable normal driving even if there is a malfunction in the stop light signal circuit. The cancellation condition occurs when voltage is applied to the terminal STP. When the brake is applied, voltage is normally applied to the terminal STP of the hybrid vehicle control ECU through the STOP fuse and the stop light switch assembly, and the hybrid vehicle control ECU turns the dynamic radar cruise control system off.

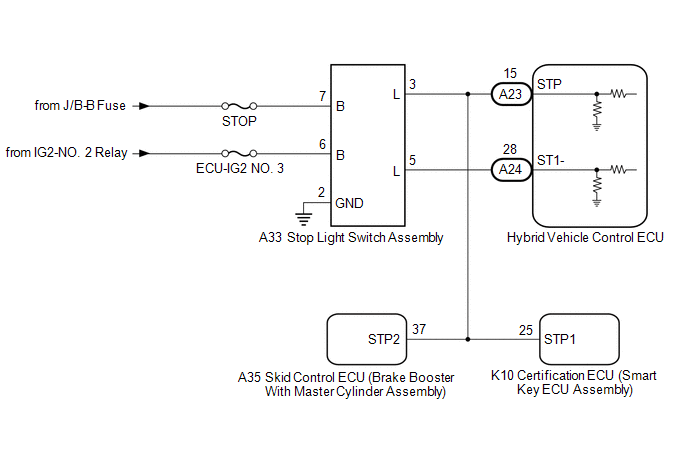

WIRING DIAGRAM CAUTION / NOTICE / HINT NOTICE:
PROCEDURE

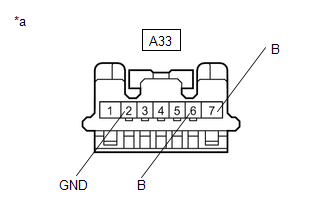

(b) Measure the resistance according to the value(s) in the table below. Standard Resistance:
(c) Measure the voltage according to the value(s) in the table below. Standard Voltage:
(d) Connect the A33 stop light switch assembly connector.
(a) Inspect the stop light switch assembly. Click here
(a) Disconnect the A23 and A24 hybrid vehicle control ECU connectors. (b) Disconnect the A33 stop light switch assembly connector. (c) Disconnect the A35 skid control ECU (brake booster with master cylinder assembly) connector. (d) Disconnect the K10 certification ECU (smart key ECU assembly) connector. (e) Measure the resistance according to the value(s) in the table below. Standard Resistance:
(f) Connect the K10 certification ECU (smart key ECU assembly) connector. (g) Connect the A35 skid control ECU (brake booster with master cylinder assembly) connector. (h) Connect the A33 stop light switch assembly connector. (i) Connect the A23 and A24 hybrid vehicle control ECU connectors.
|
