Toyota Avalon (XX50) 2019-2022 Service & Repair Manual: Parts Location

PARTS LOCATION

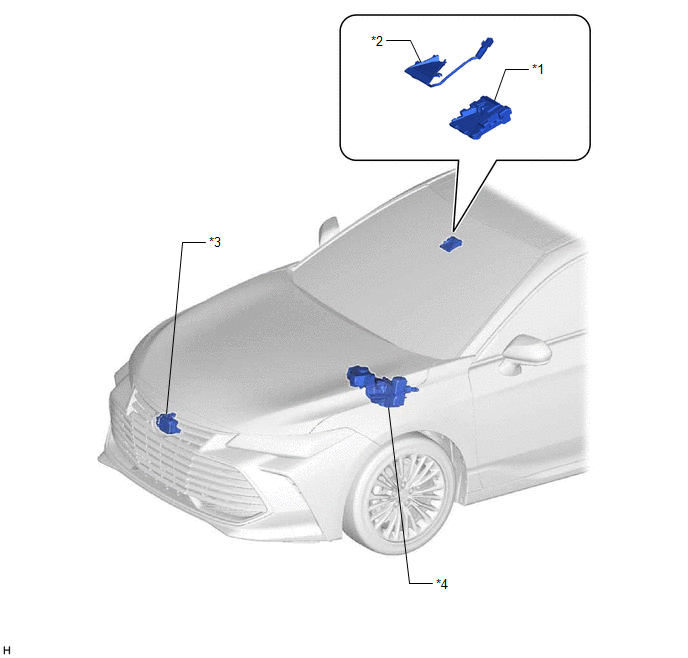

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

*3

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

*4

BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

- SKID CONTROL ECU

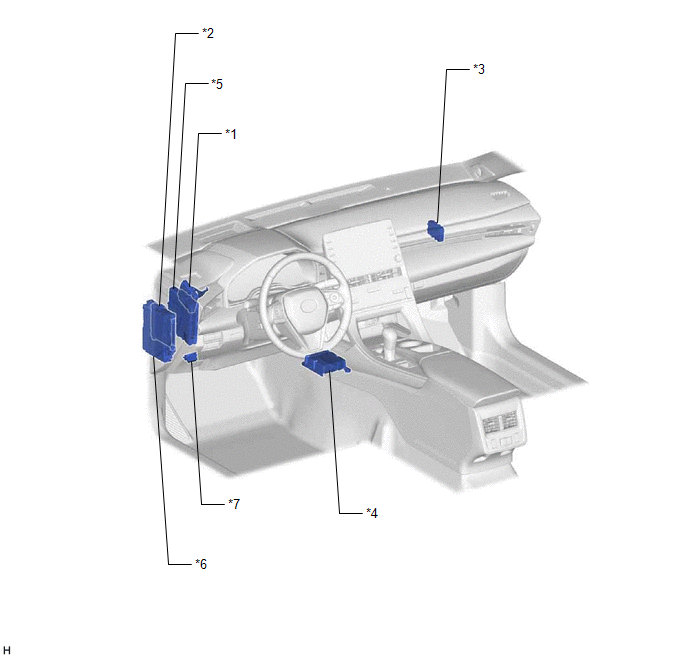

ILLUSTRATION

*1

DRIVING SUPPORT ECU ASSEMBLY

*2

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*3

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

*4

AIRBAG ECU ASSEMBLY

- YAW RATE SENSOR

*5

HYBRID VEHICLE CONTROL ECU

*6

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 3 FUSE

*7

DLC3

-

-
